Aluminium Caravan Box with Generator and BBQ Slide - Black 2200mm x 550mm x 550mm

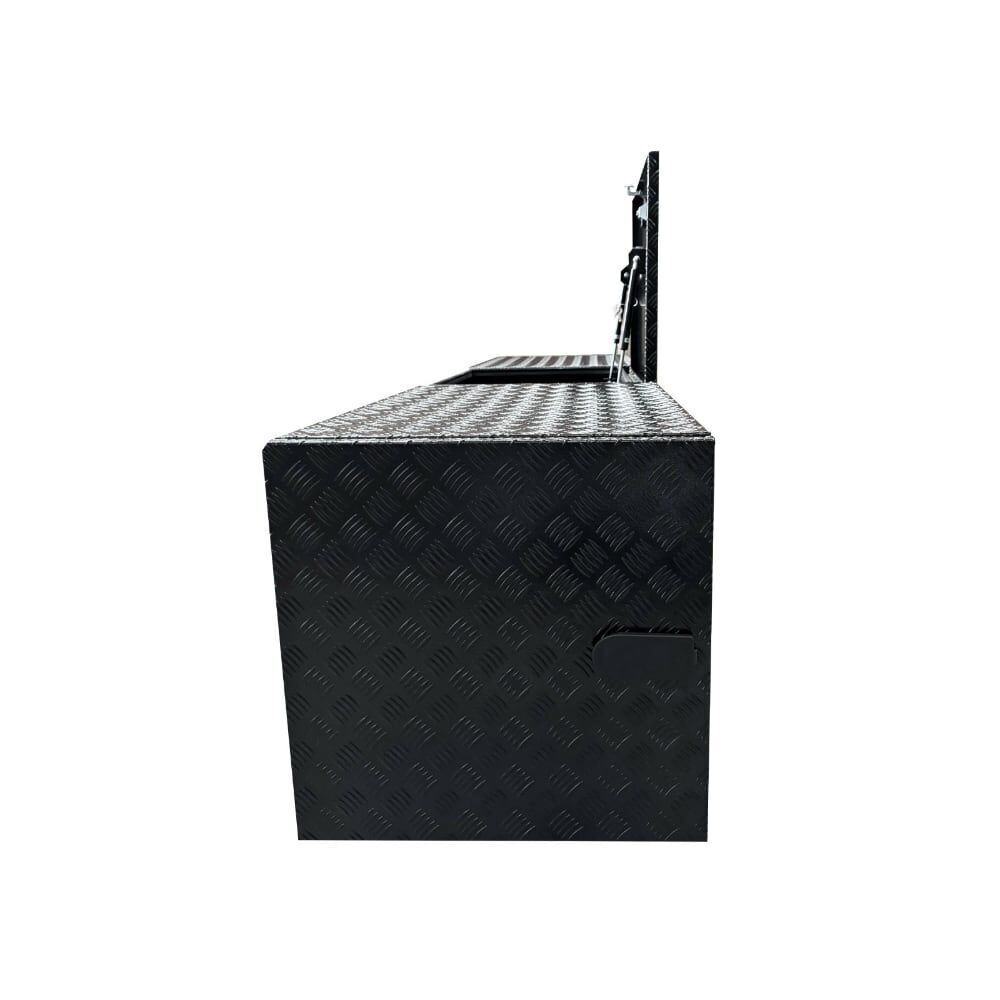

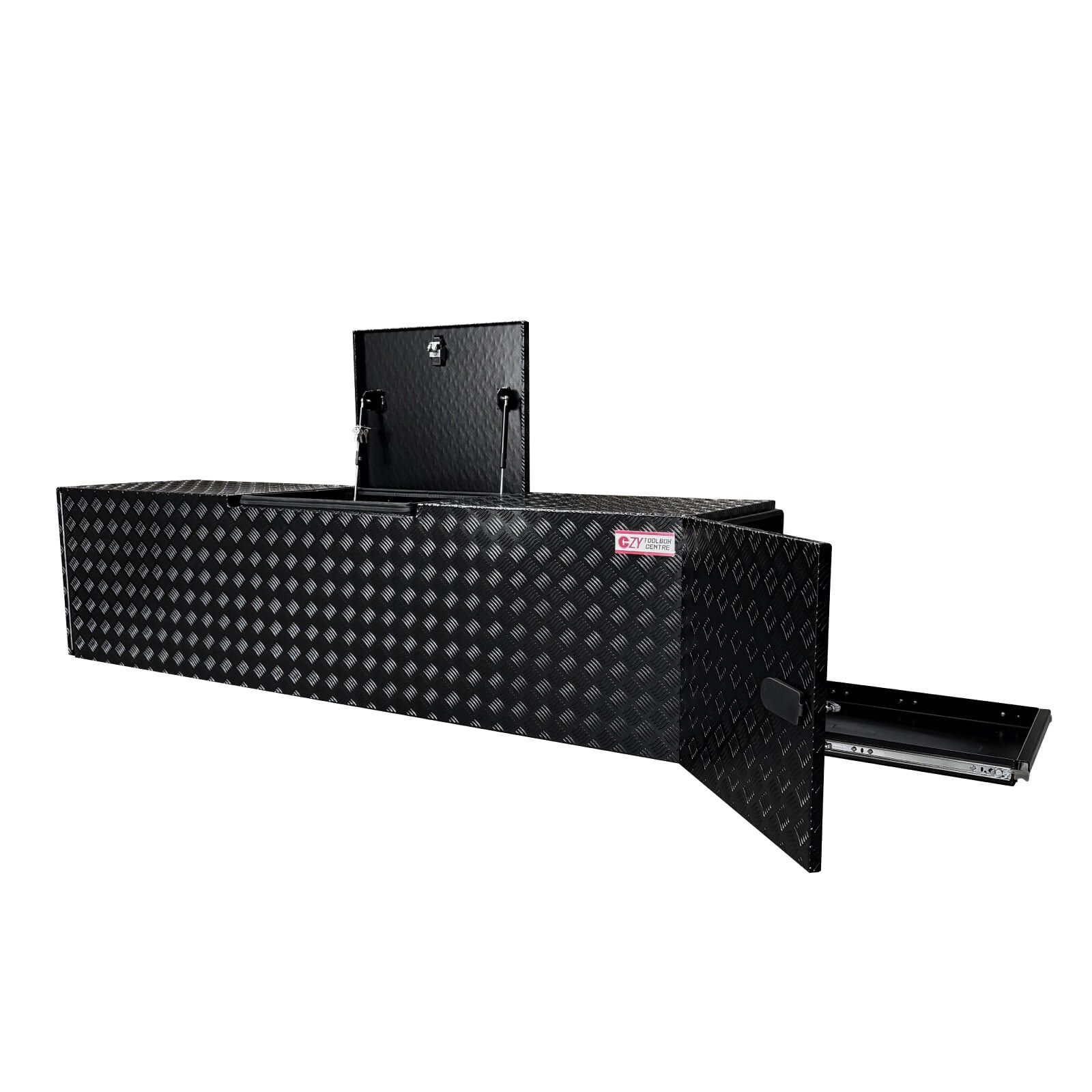

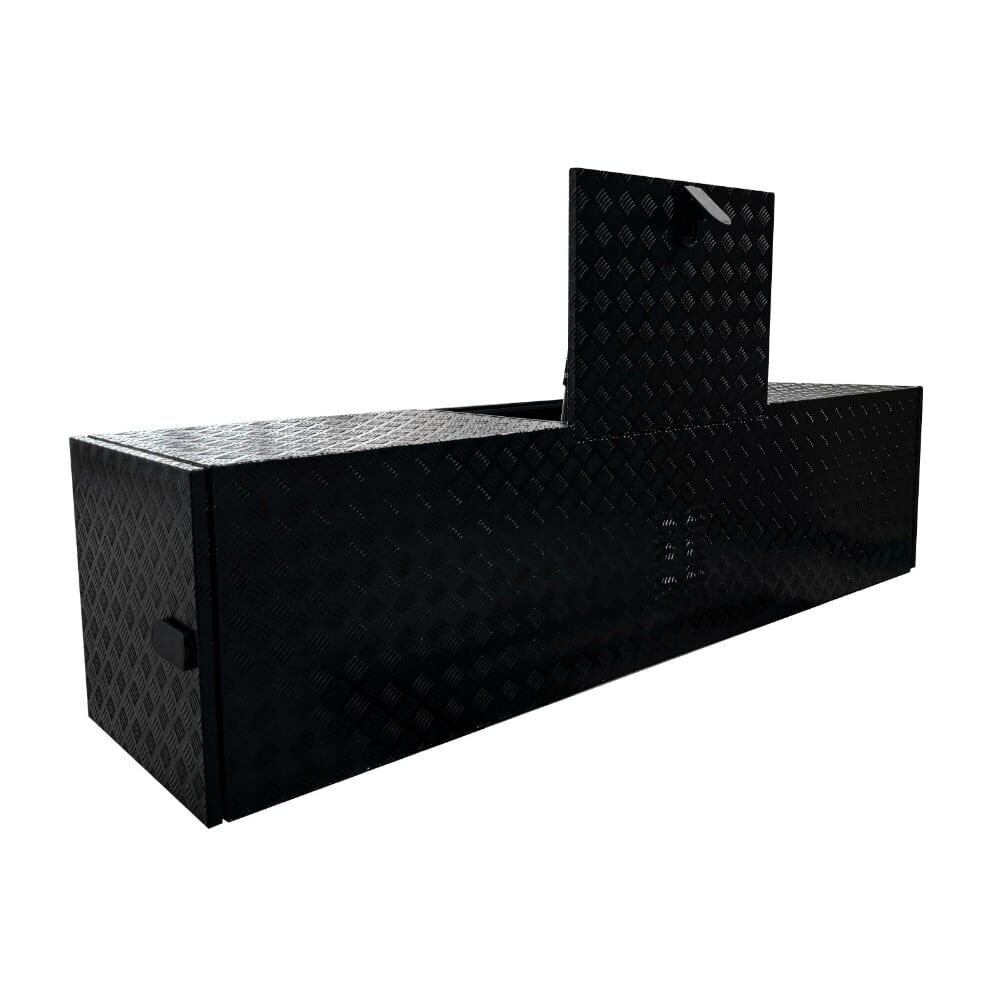

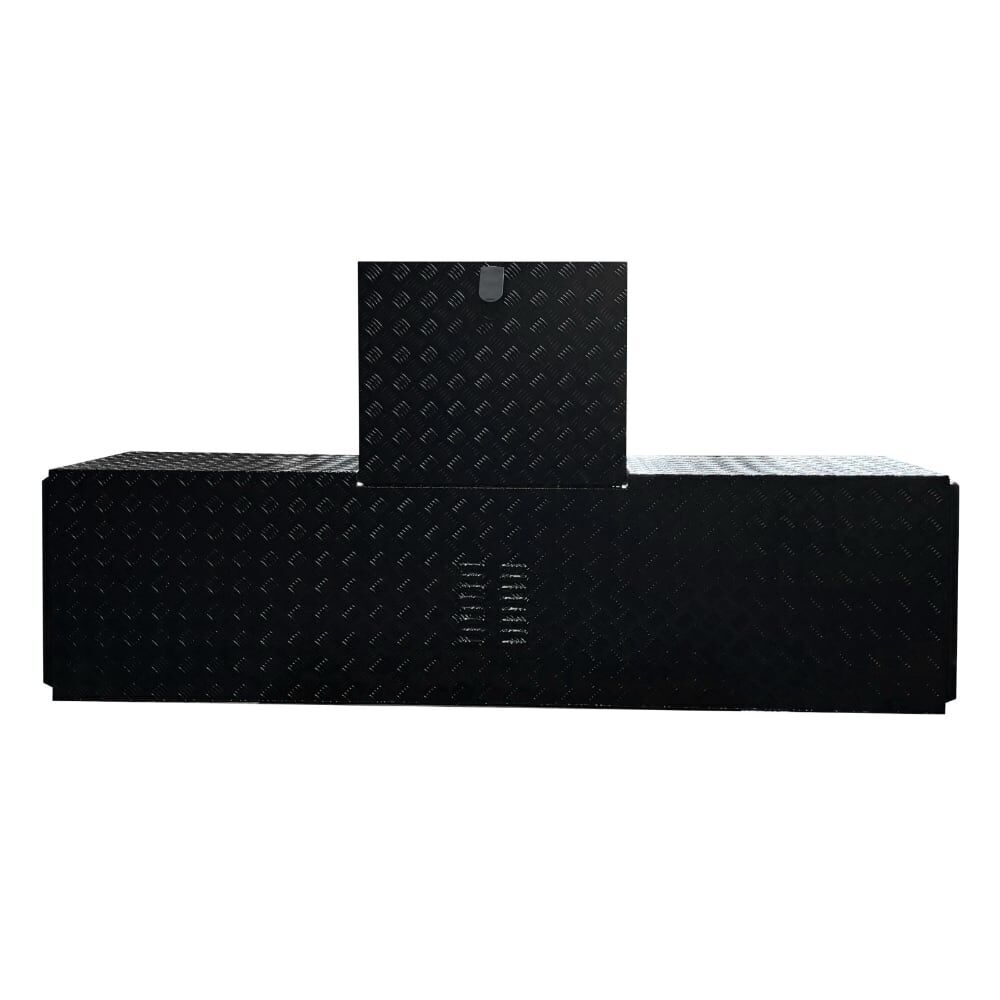

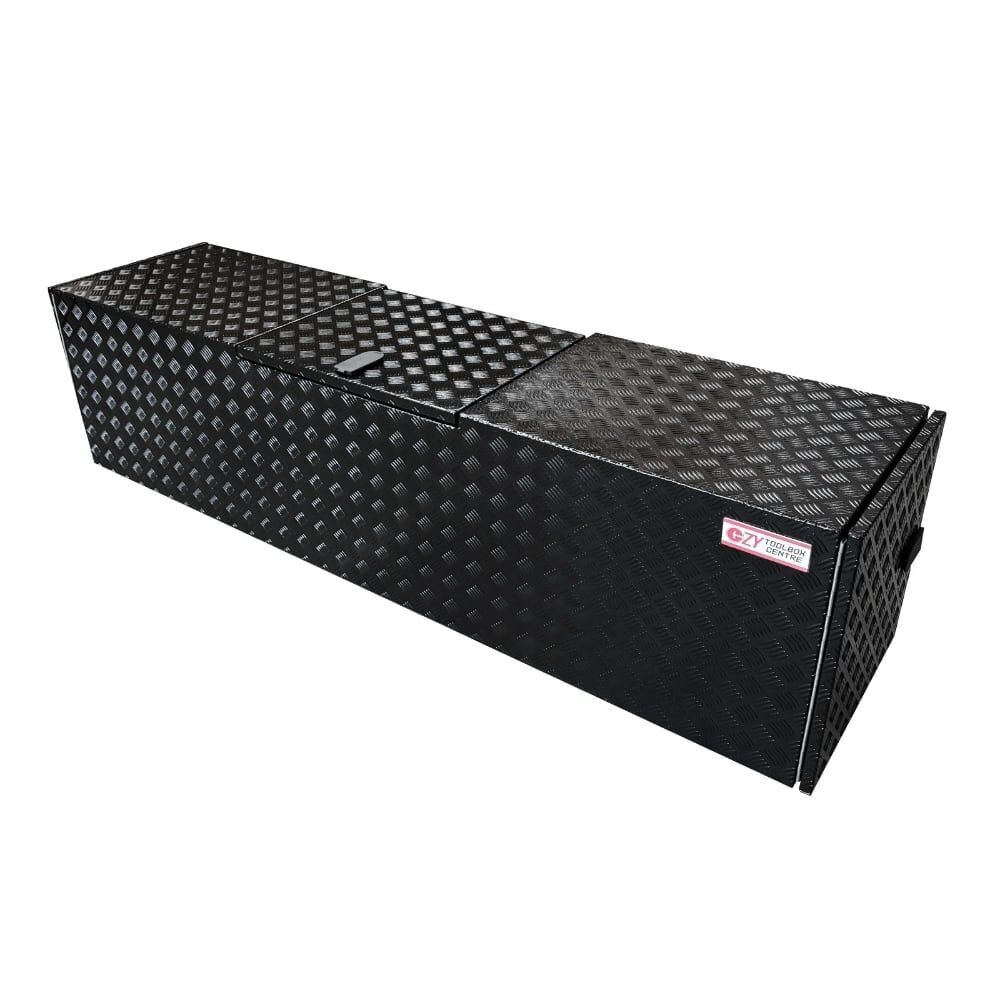

Built as a generator box for trailers, this black 2200mm aluminium toolbox opens through a top lid to a 2144 mm clear opening, with room to carry a generator alongside camp or work gear in one long, low box. At 550 mm high and 550 mm deep, it keeps a compact cross-section across its full 2200 mm width. Every panel is built from 3.0 mm 5052 marine-grade aluminium, fully welded, with reinforced side walls, roof and floor. The lid lifts on twin gas struts and closes with whale tail compression locks, and the box carries a 24-month warranty.
DIMENSIONS
| External width | 2200 mm |
|---|---|
| External depth | 550 mm |
| External height | 550 mm |
CONSTRUCTION
| Alloy | 5052 marine grade aluminium |
|---|---|
| Thickness | 3.0 mm |
| External finish | Powdercoated Black |

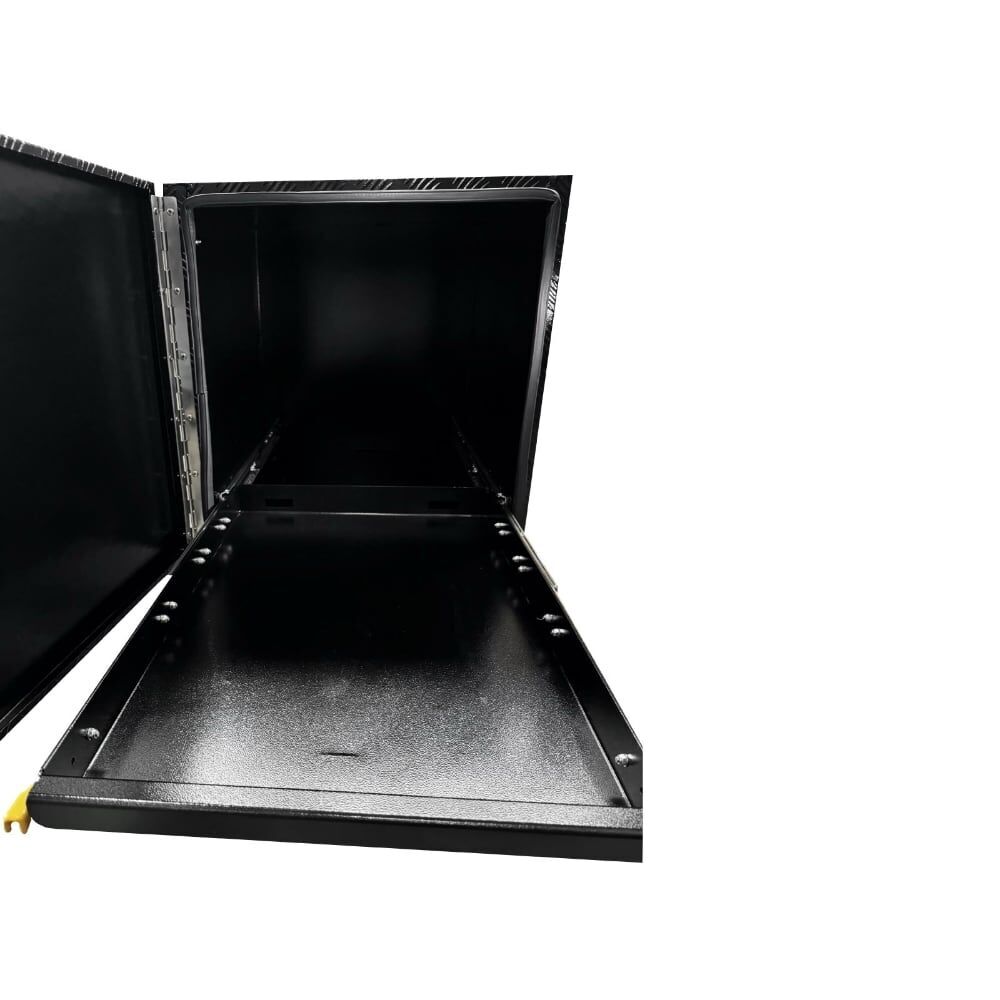

SLIDE DIMENSIONS
| Right slide Length | 692 mm |
|---|---|
| Right Slide Width | 413 mm |
| Left slide Length | 692 mm |
| Left slide Width | 413 mm |
| Door opening width | 470 mm |
| Door opening height | 445 mm |

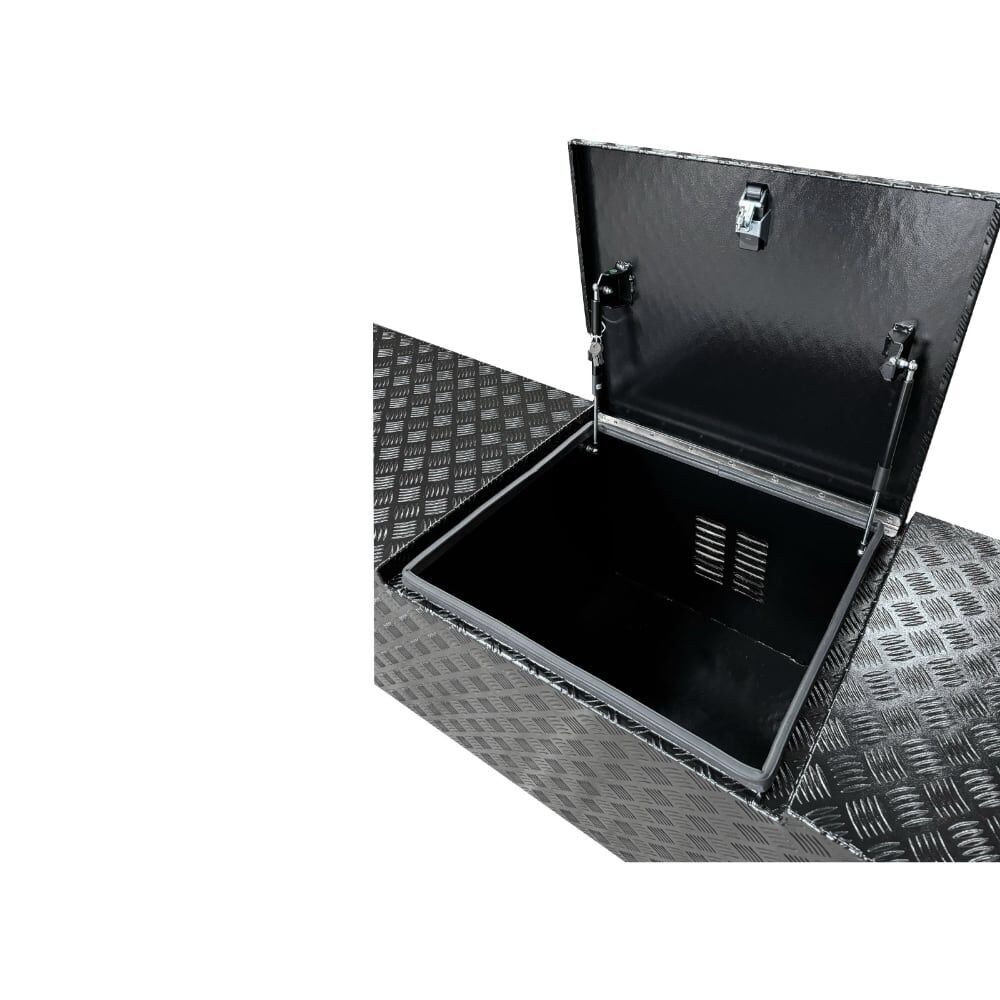

LIDS AND GAS STRUTS
| Lid configuration | Top lid, side doors |
|---|---|
| Gas struts fitted | Yes |
| Strut force each | 150N |
| Strut stroke | 190mm |
| Hinge type and material | Stainless steel piano hinge |
HARDWARE AND FIT OUT

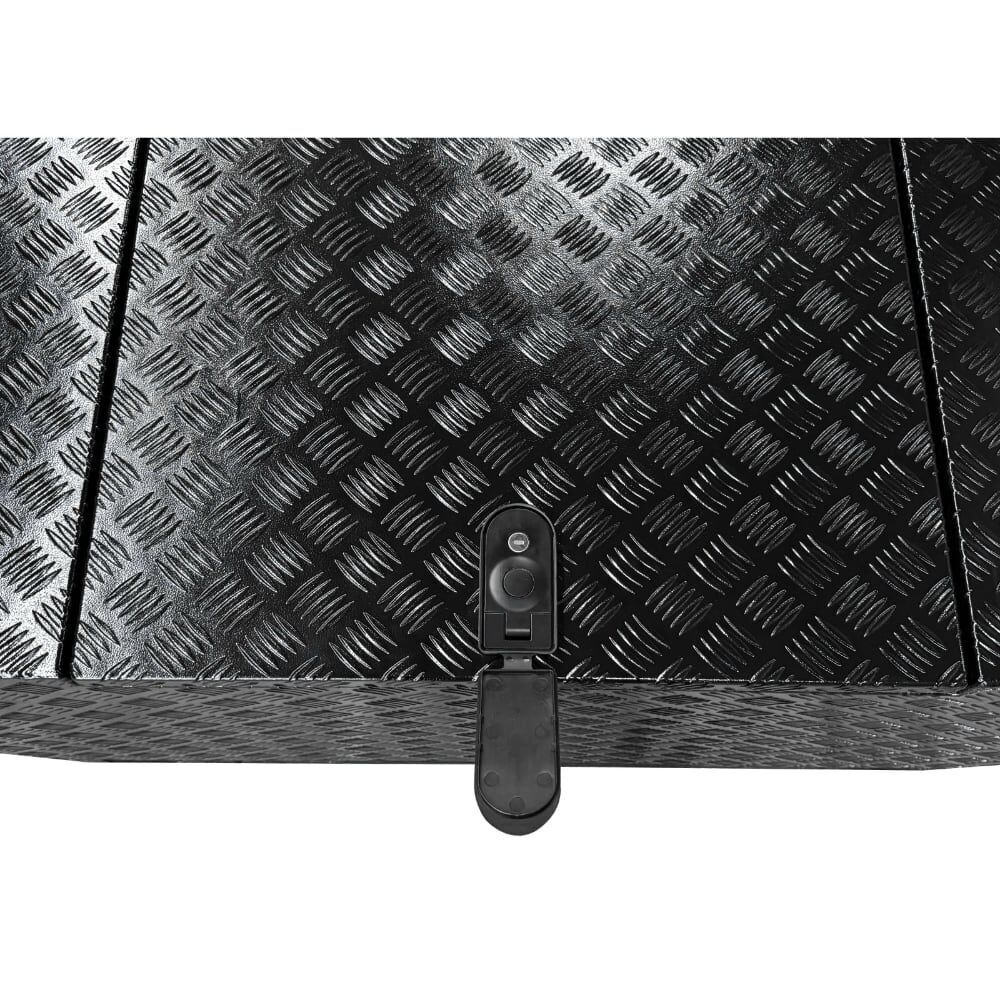

| Lock type | Push locks |
|---|---|
| Locks fitted | 2 |
| Keyed alike | Yes, across the range |
| Keys supplied | Yes, 2 with the box |
| Drain points | Yes, in the lid |
| Mounting method | M10 bolts, 40 x 40 washers, nyloc nuts |
STORAGE
| Slide load rating | 100kg rated runners |
|---|
COMPLIANCE
| Weather sealing | Dust and water sealed |
|---|---|
| Warranty | 24 months |
PACKING AND FREIGHT
| Packaging | 10 mm foam |
|---|---|
| Stocked at | Sydney, Brisbane, Perth |
| SKU | OZY-H-2255B |
| Brand | OZYTOOLBOX |
| Shipping Weight | 60.0000kg |
| Shipping Width | 0.570m |
| Shipping Height | 0.670m |
| Shipping Length | 2.220m |
| Shipping Cubic | 0.847818000m3 |
| Unit Of Measure | m |
