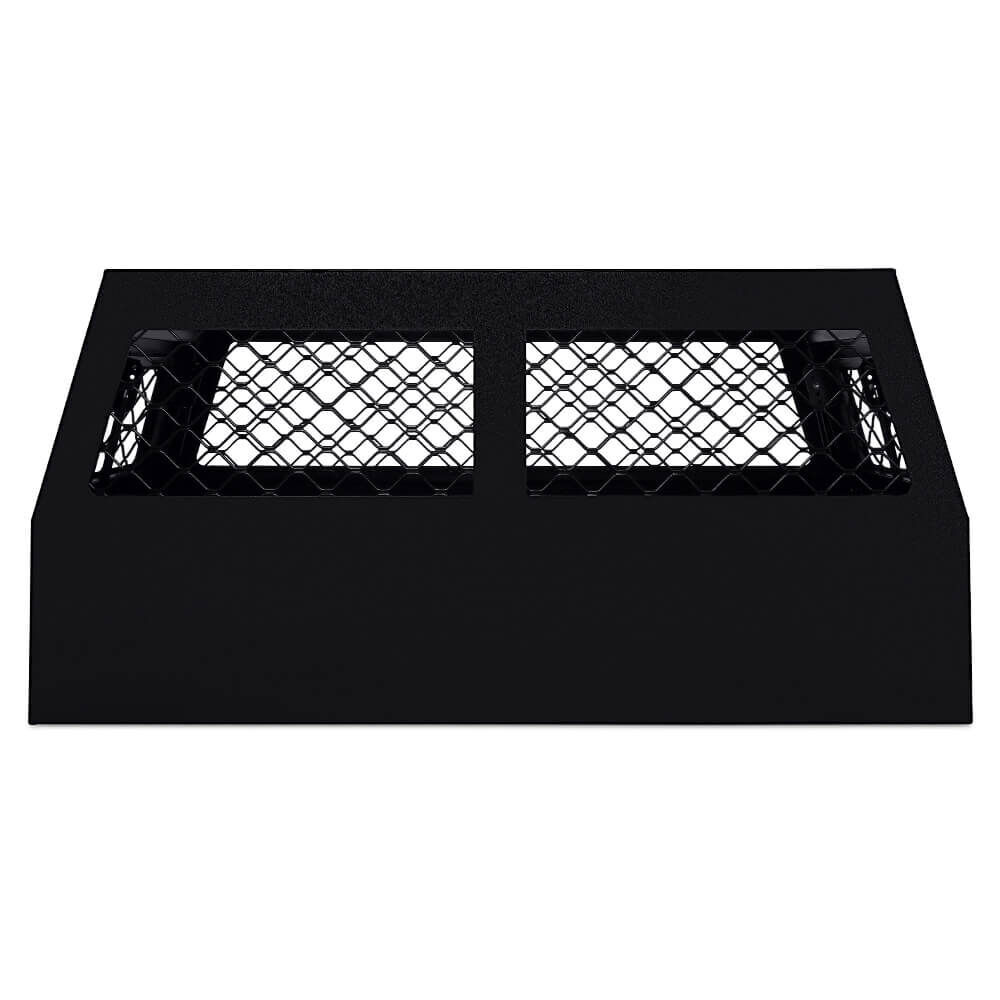

Aluminium Dog Cage - Black 1780mm x 700mm x 850mm

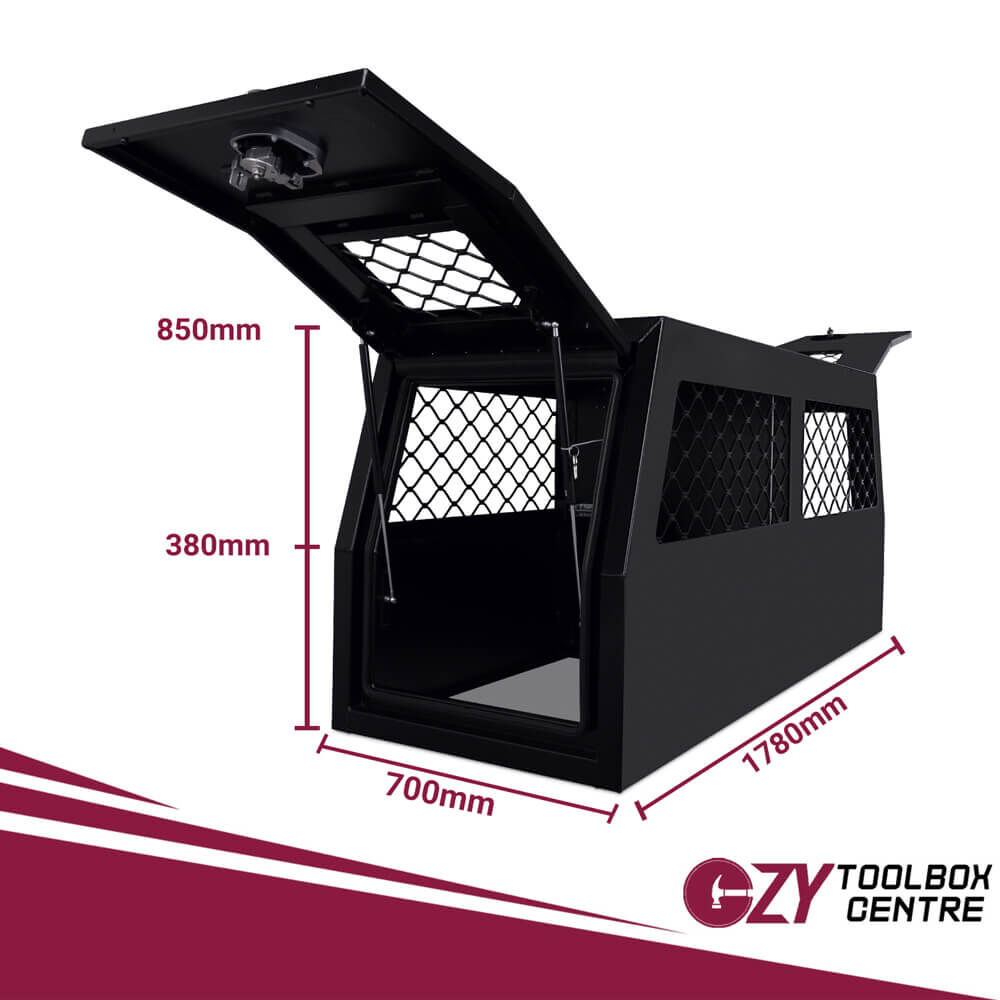

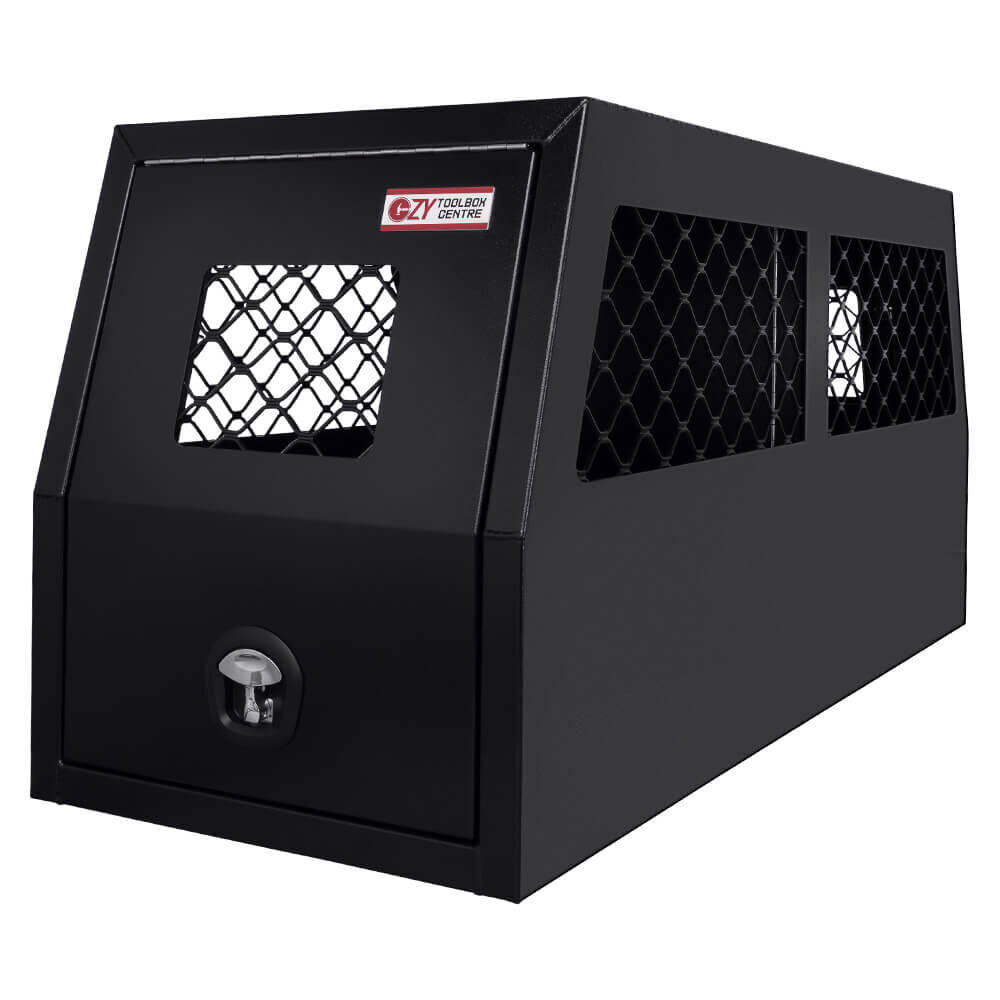

Unlike a fully enclosed canopy, this black 1780mm aluminium dog box is built with ventilated windows and a vent panel, so air can move through while your working dogs travel on the tray. It measures 1780 x 700 x 850 mm and opens through gullwing doors on four gas struts. This dog cage body is made from 2.5 mm 5052 marine-grade aluminium, fully welded, with reinforced floor, walls and roof. Whale tail compression locks secure the doors, and it carries a 24-month warranty.
DIMENSIONS
| External width | 1780 mm |
|---|---|
| External depth | 700 mm |
| External height | 850 mm |
| Roof width | 1508 mm |
| Tapered face length | 490 mm |
| Taper, from vertical | 16.2 degrees |
CONSTRUCTION
| Alloy | 5052 marine grade aluminium |
|---|---|
| Thickness | 2.5mm |
| External finish | Powdercoated black |
HARDWARE AND FIT OUT

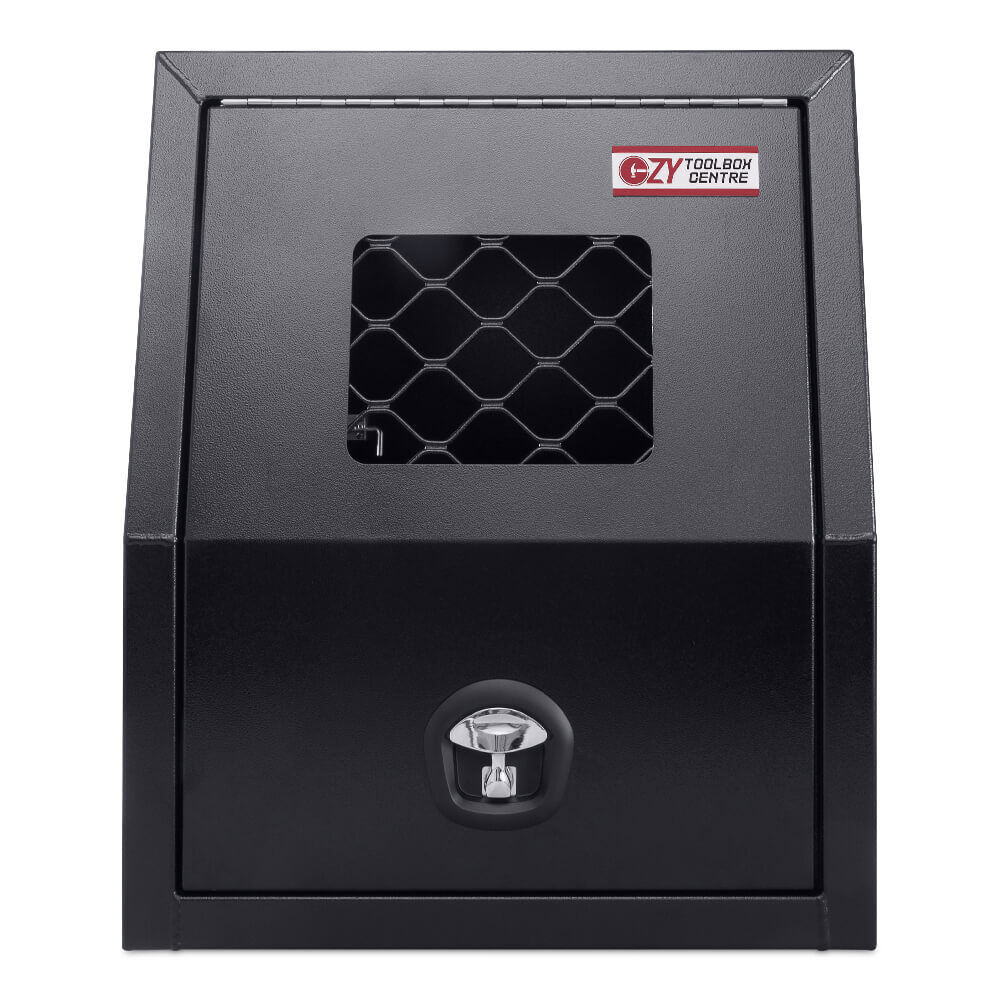

| Lock type | Whale tail compression lock |
|---|---|
| Keyed alike | Yes, across the range |
| Keys supplied | Yes, 2 with the box |
| Drain points | Yes, in the lid |
| Mounting method | M10 bolts, 40 x 40 washers, nyloc nuts |
LIDS AND GAS STRUTS

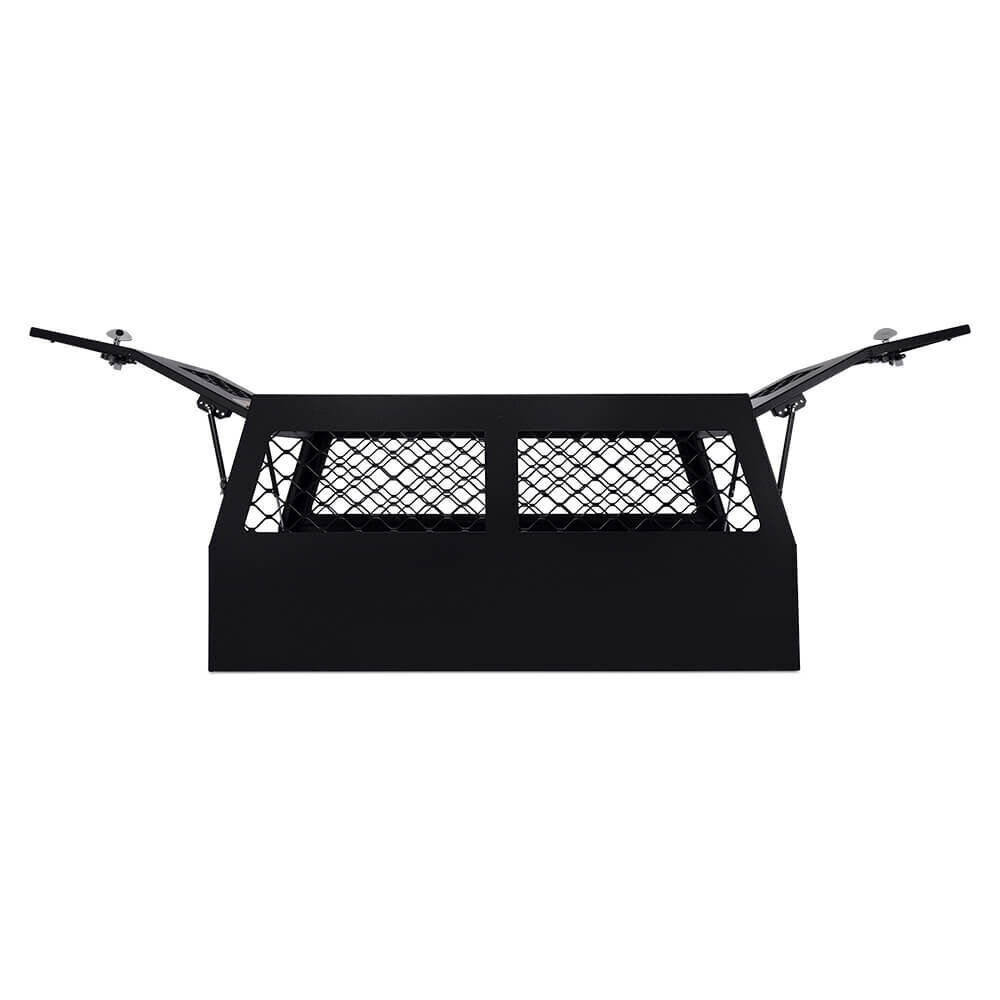

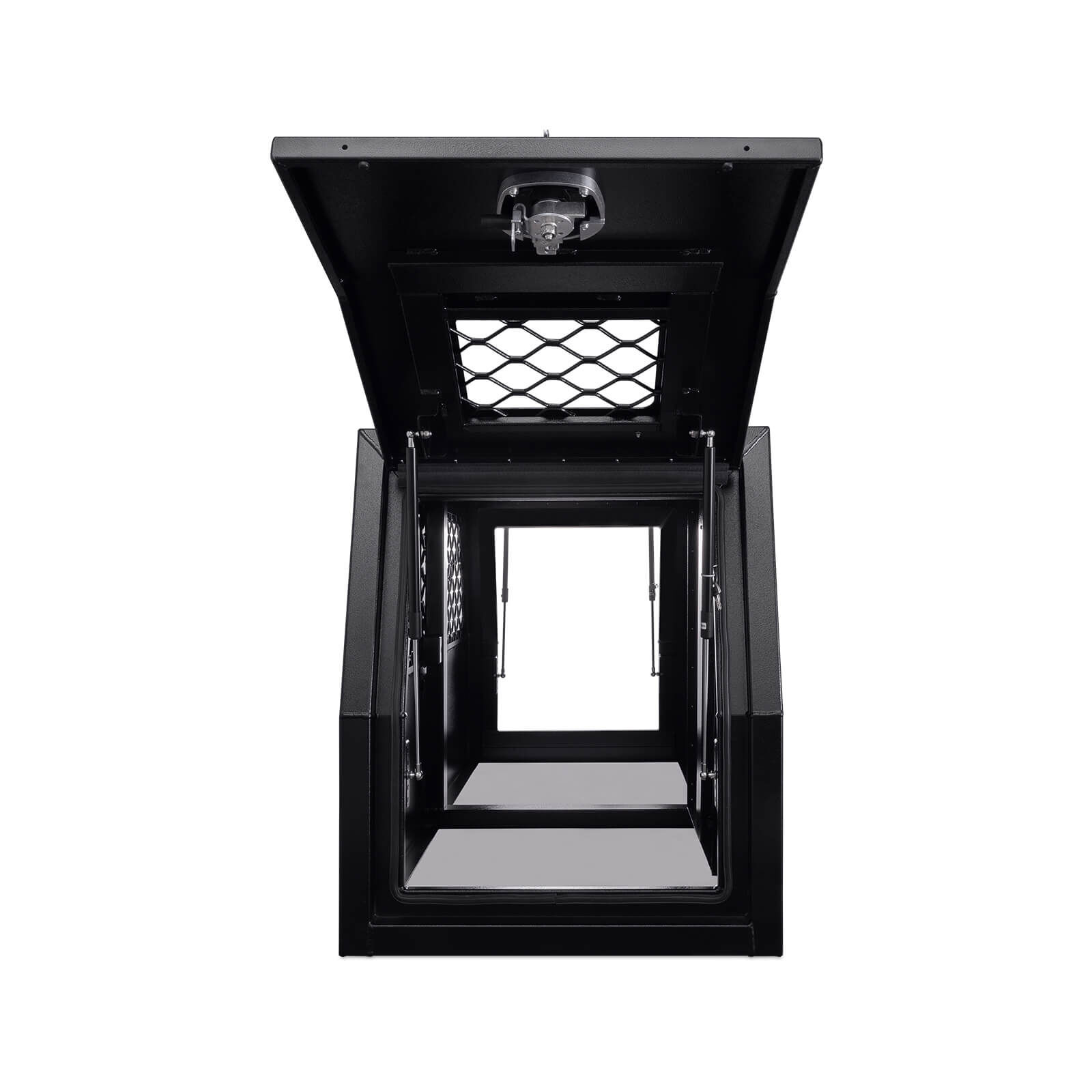

| Lid configuration | Gullwing doors |
|---|---|
| Gas struts fitted | 4 |
| Strut force each | 200N |
| Strut stroke | 190 mm |
| Hinge type and material | Stainless steel piano hinge |
COMPLIANCE
| Weather sealing | Dust and water sealed |
|---|---|
| Warranty | 24 months |
PACKING AND FREIGHT
| Packaging | 10 mm foam |
|---|---|
| Stocked at | Sydney, Brisbane, Perth |
| SKU | OZY-H-DBBLK |
| Brand | OZYTOOLBOX |
| Shipping Weight | 65.0000kg |
| Shipping Width | 0.720m |
| Shipping Height | 0.970m |
| Shipping Length | 1.800m |
| Shipping Cubic | 1.257120000m3 |
| Unit Of Measure | m |
