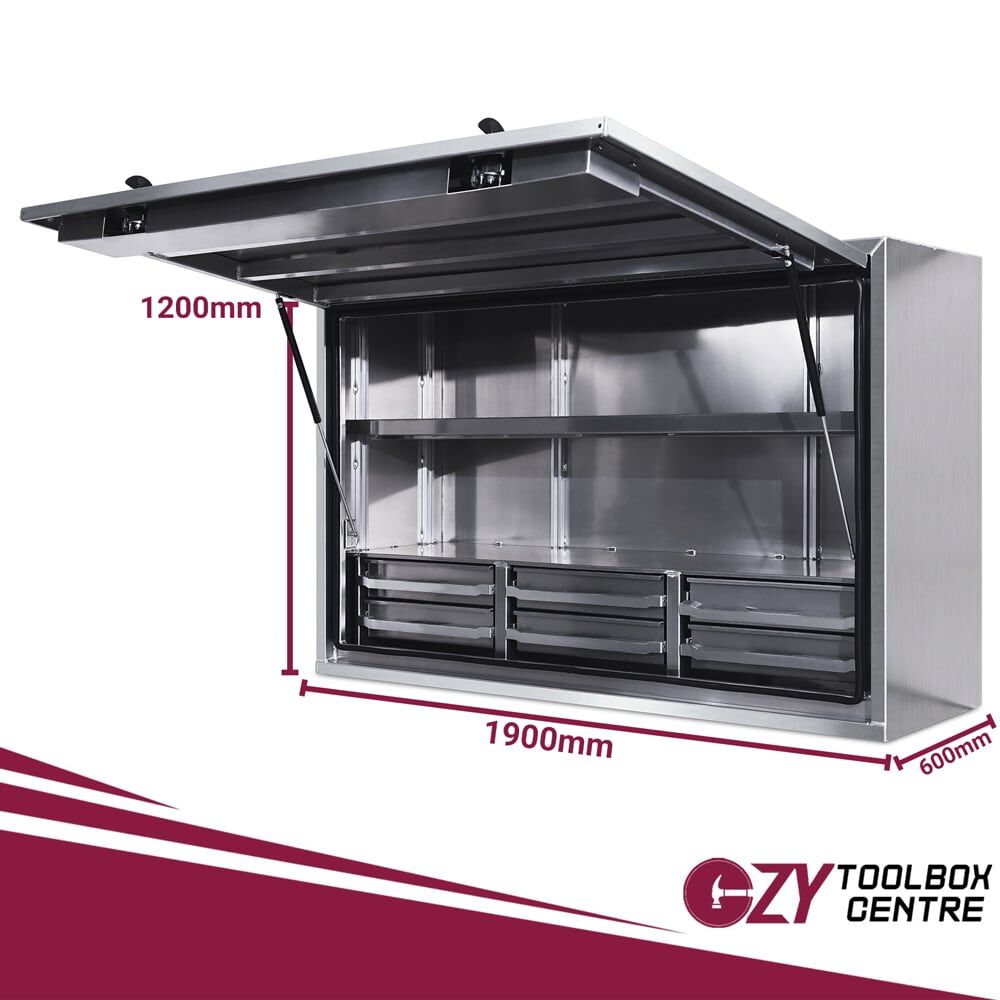

Full Lid Truck Toolbox with 6 Drawers - Flat Plate 1900mm x 600mm x 1200mm

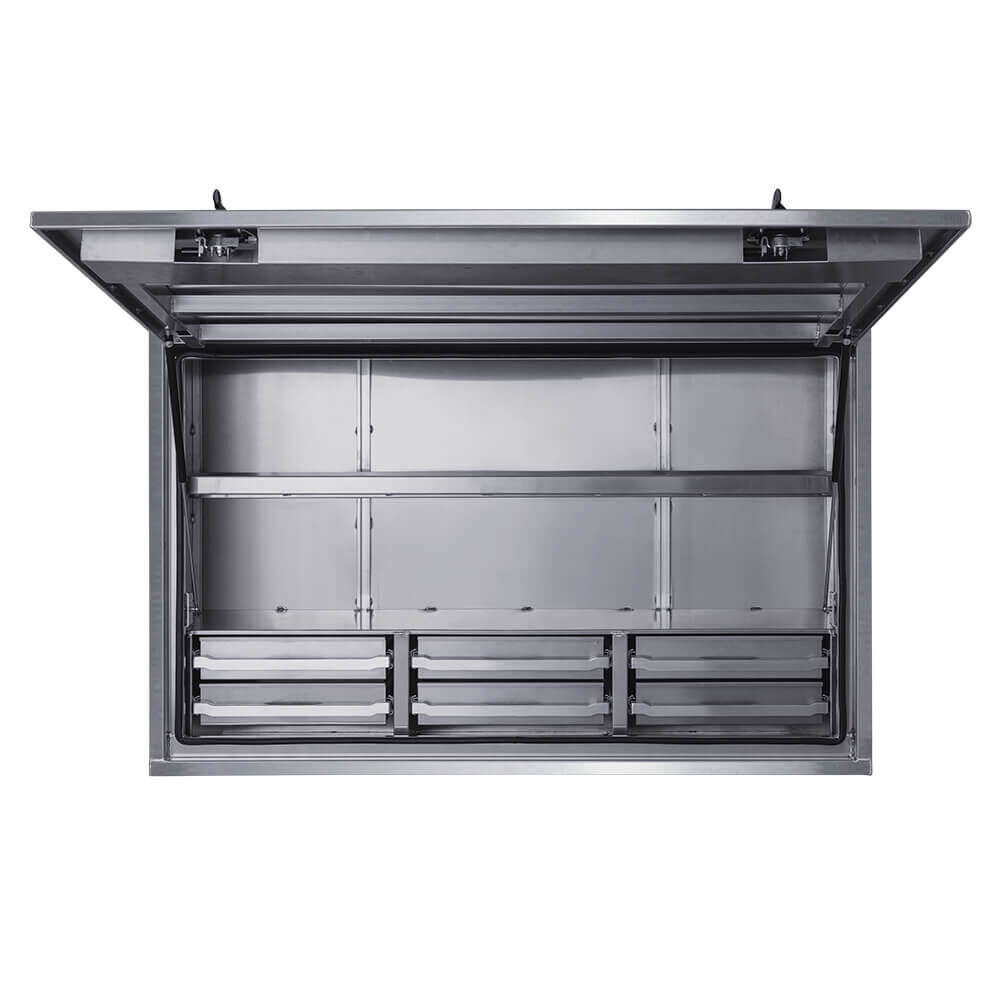

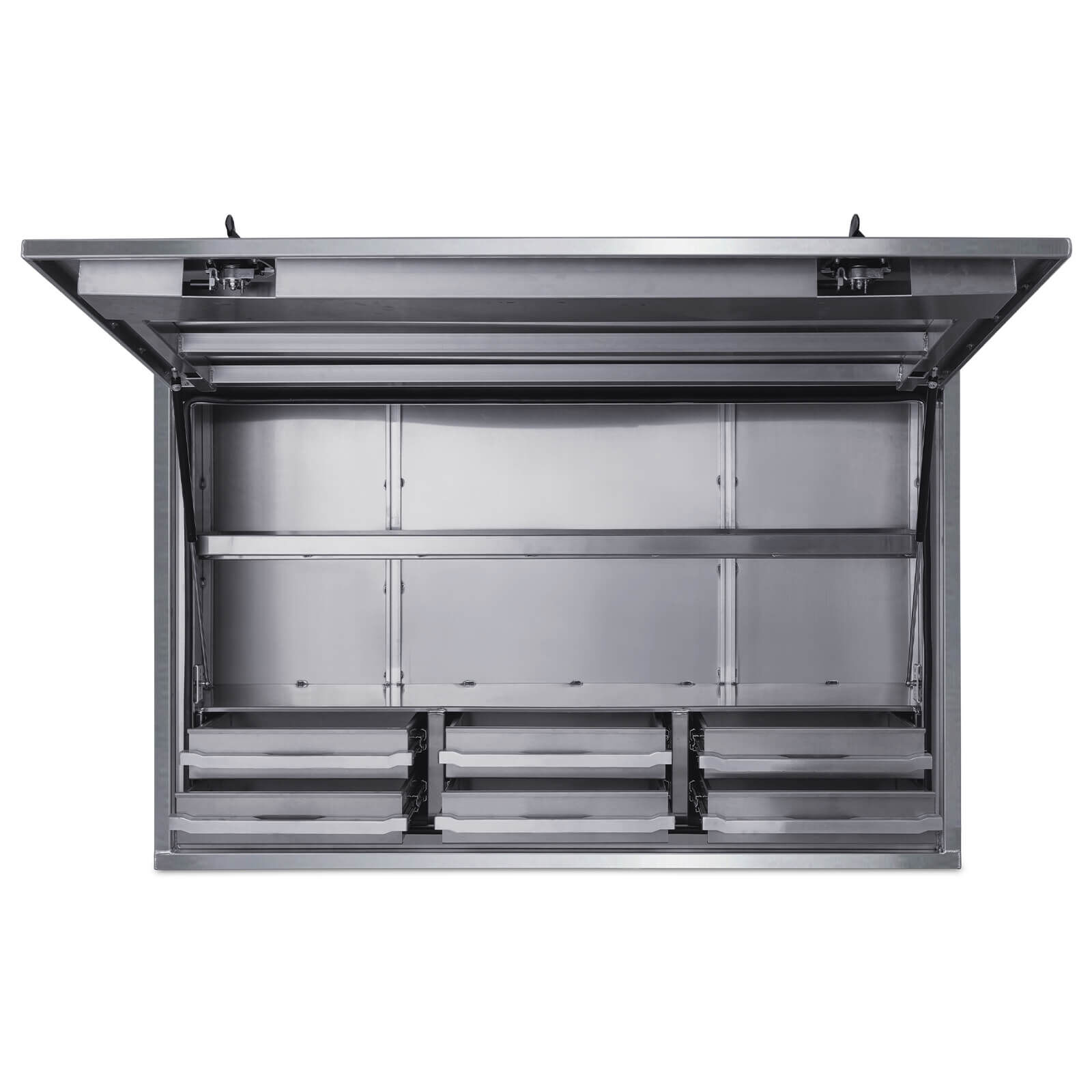

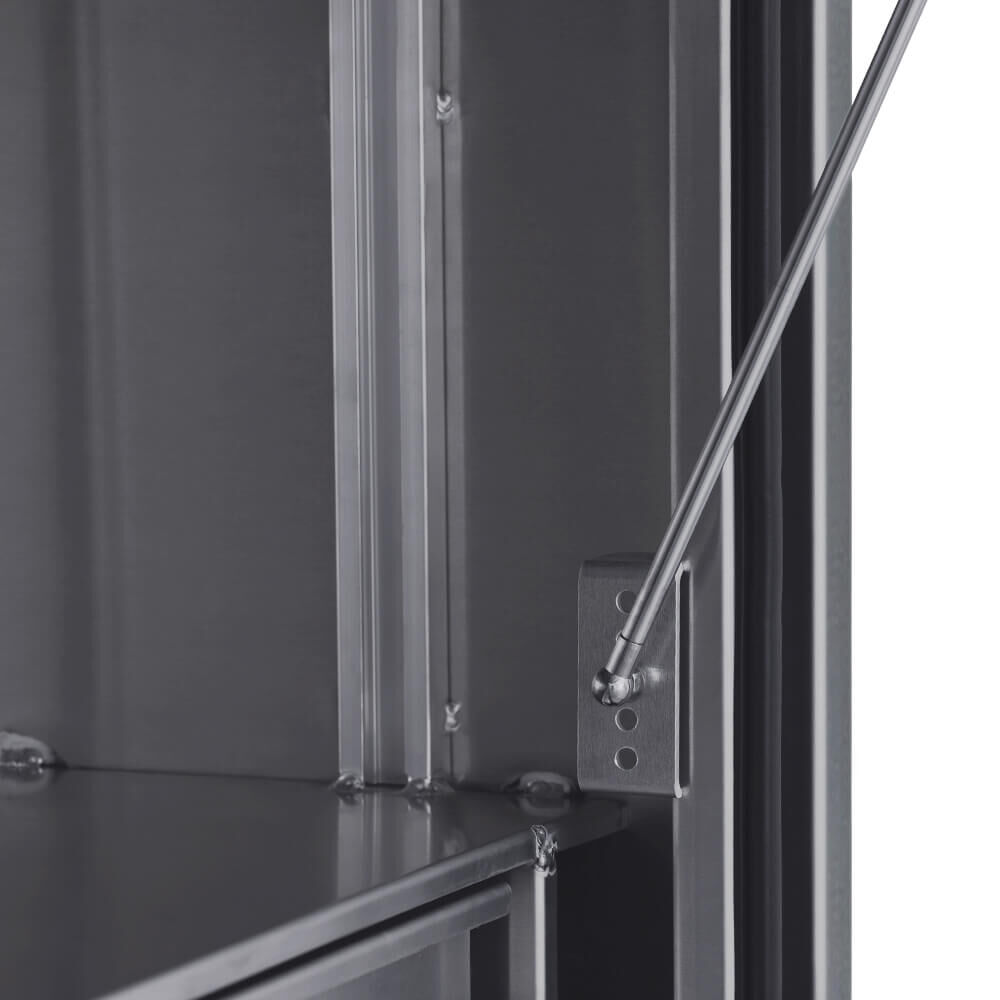

Six internal drawers turn this 1900mm aluminium truck toolbox into a mobile parts store, so fittings, fasteners and hand tools are already sorted by the time you reach the job. Each drawer is just over 500 mm wide and 452 mm deep inside, with 120 mm fronts, heavy-duty slides rated to 50 kg and push-to-open latches. A single full lid on twin gas struts opens to a 1727 mm clear opening and closes with whale tail compression locks. The 1900 x 600 x 1200 mm body is fully welded 3.0 mm 5052 marine-grade aluminium with reinforced side walls, roof and floor in a raw flat plate finish, and it's stocked at our Sydney, Brisbane and Perth warehouses.
DIMENSIONS
| External width | 1900 mm |
|---|---|
| External depth | 600 mm |
| External height | 1200 mm |
CONSTRUCTION
| Alloy | 5052 marine grade aluminium |
|---|---|
| Thickness | 3.0 mm |
| Reinforced panels | Side walls and roof |
| External finish | Raw flat plate |

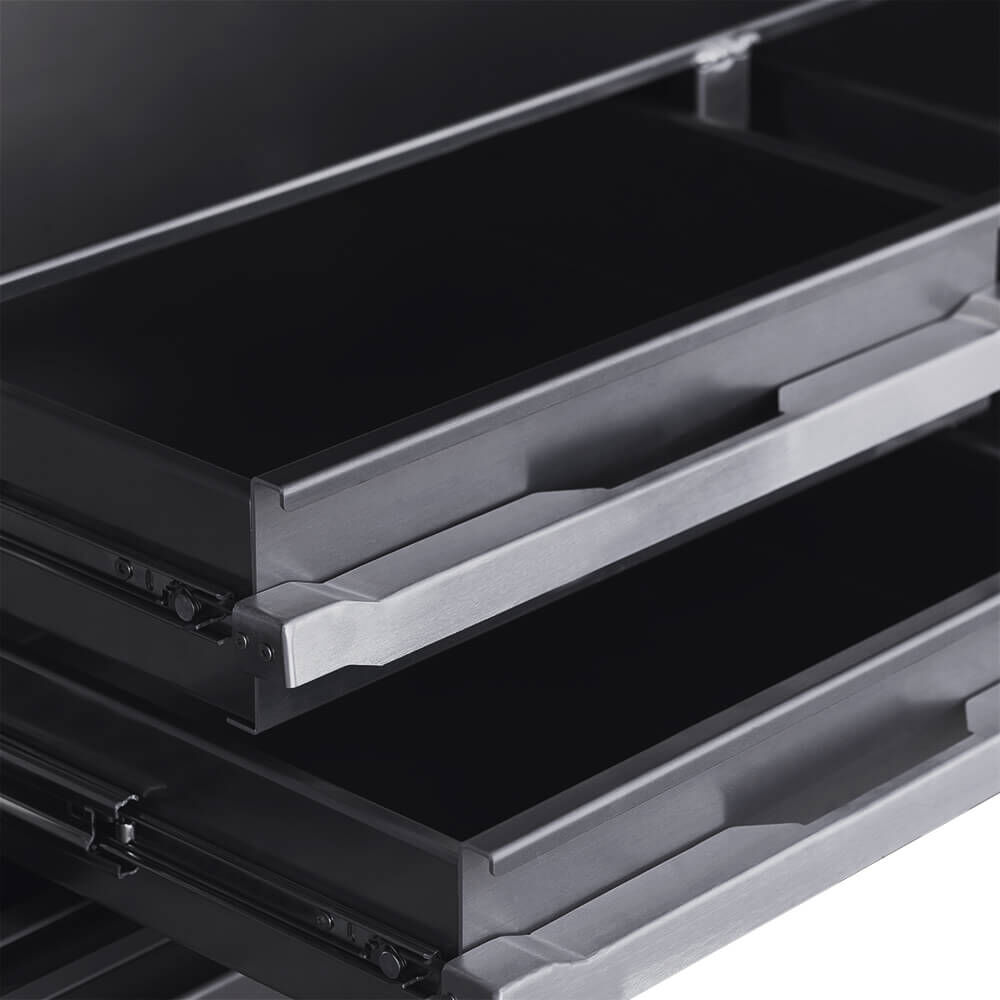

DRAWERS AND STORAGE
| Number of drawers | 6 |
|---|---|
| Drawer type | Internal, under the lid |
| Drawer internal width | 500 mm |
| Drawer front depth | 445 mm |
| Drawer front height | 120 mm |
| Latch type | Push to open |
| Slide load rating | 50 kg |
HARDWARE AND FIT OUT

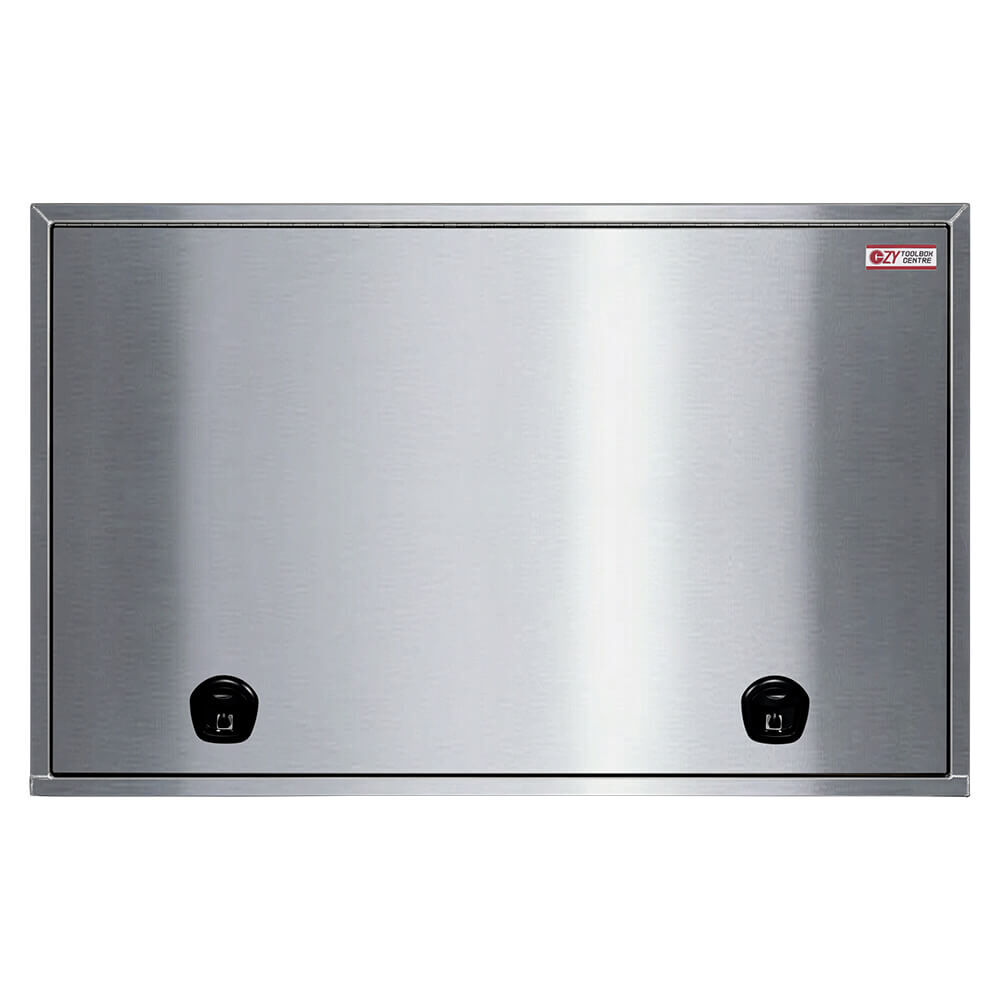

| Lock type | Whale tail compression lock |
|---|---|
| Locks fitted | 2 |
| Keyed alike | Yes, across the range |
| Keys supplied | Yes, 2 with the box |
| Drain points | Yes, in the lid |
| Mounting method | M10 bolts, 40 x 40 washers, nyloc nuts |
LIDS AND GAS STRUTS
| Lid configuration | Single full lid |
|---|---|
| Gas struts fitted | To be confirmed |
| Strut force each | To be confirmed |
| Strut stroke | To be confirmed |

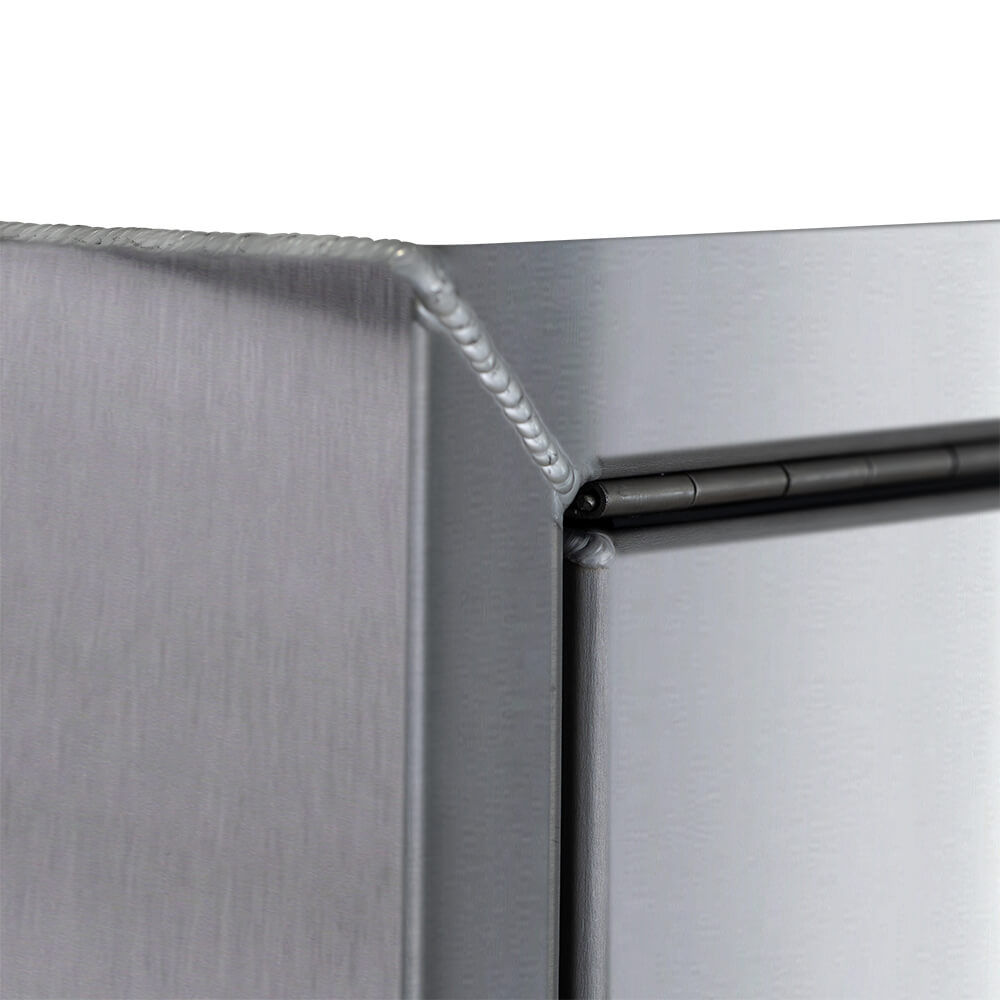

| Hinge type and material | Stainless steel piano hinge |
COMPLIANCE
| Weather sealing | Dust and water sealed |
|---|---|
| Warranty | 24 months |
PACKING AND FREIGHT
| Packaging | 10 mm foam |
|---|---|
| Stocked at | Sydney, Brisbane, Perth |
| SKU | OZY-H-1961FP-6D |
| Brand | OZYTOOLBOX |
| Shipping Weight | 100.0000kg |
| Shipping Width | 0.620m |
| Shipping Height | 1.320m |
| Shipping Length | 1.920m |
| Shipping Cubic | 1.571328000m3 |
| Unit Of Measure | m |
