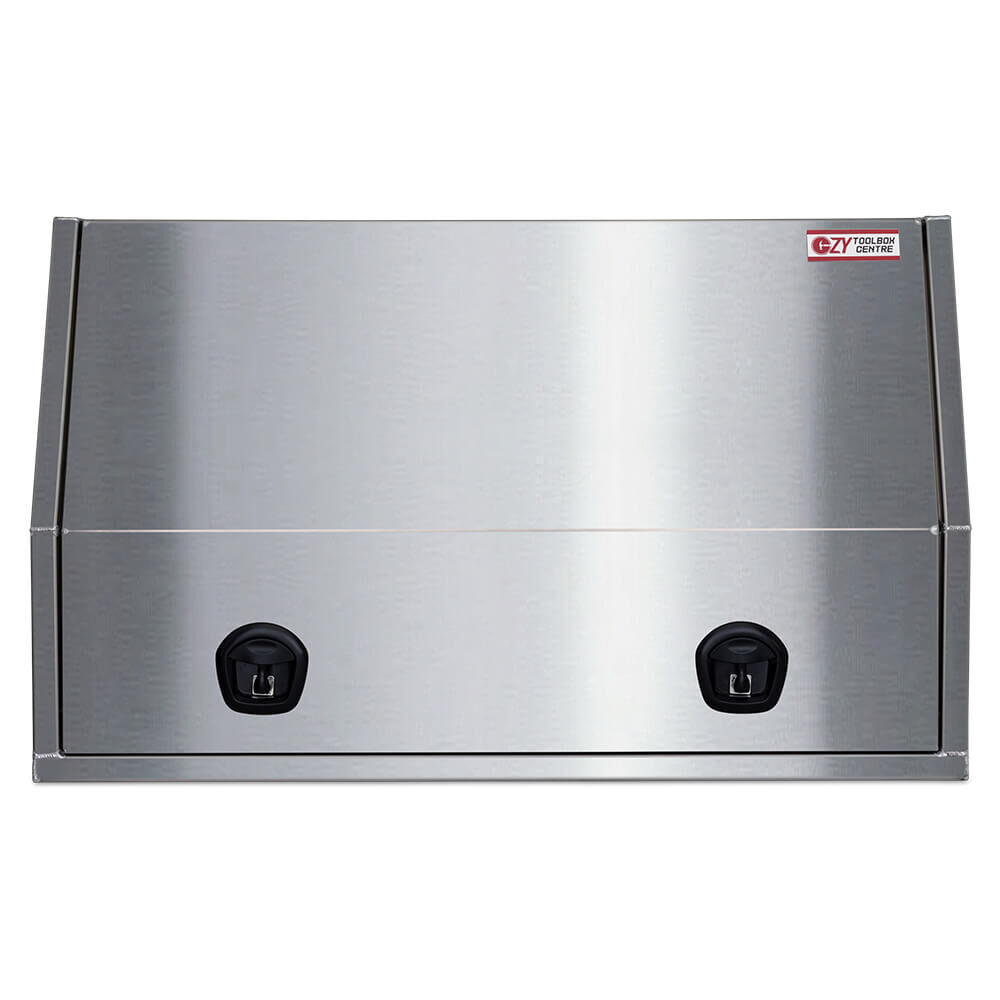

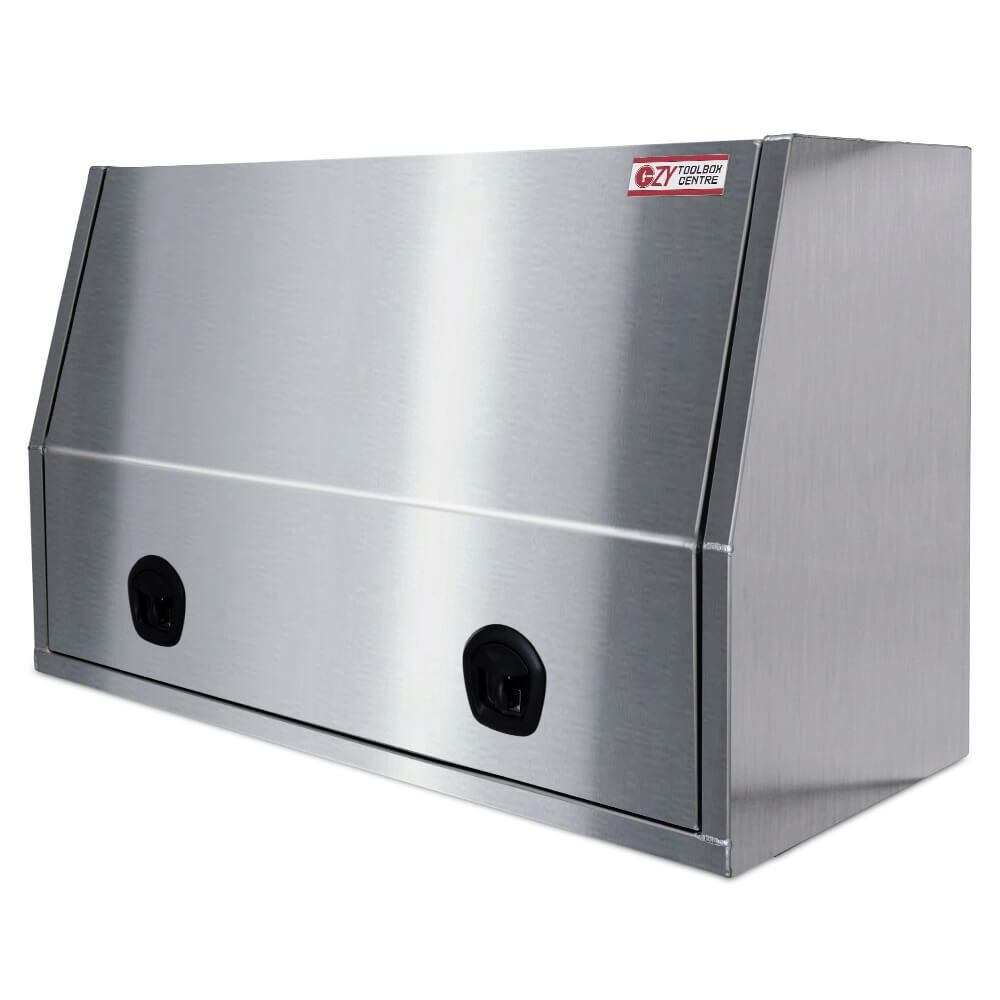

Full Side Opening UTE Toolbox with 3 Built-in Drawers - Flat Plate 1400mm x 600mm x 850mm

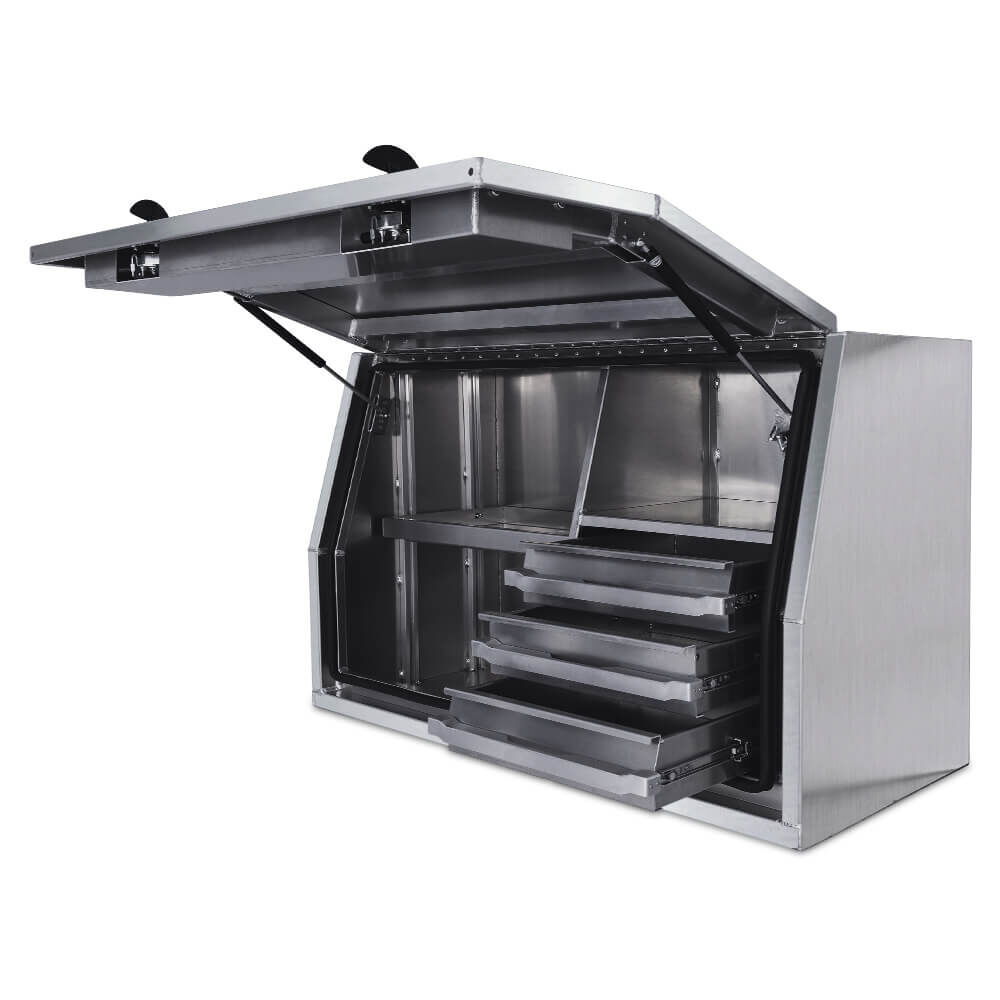

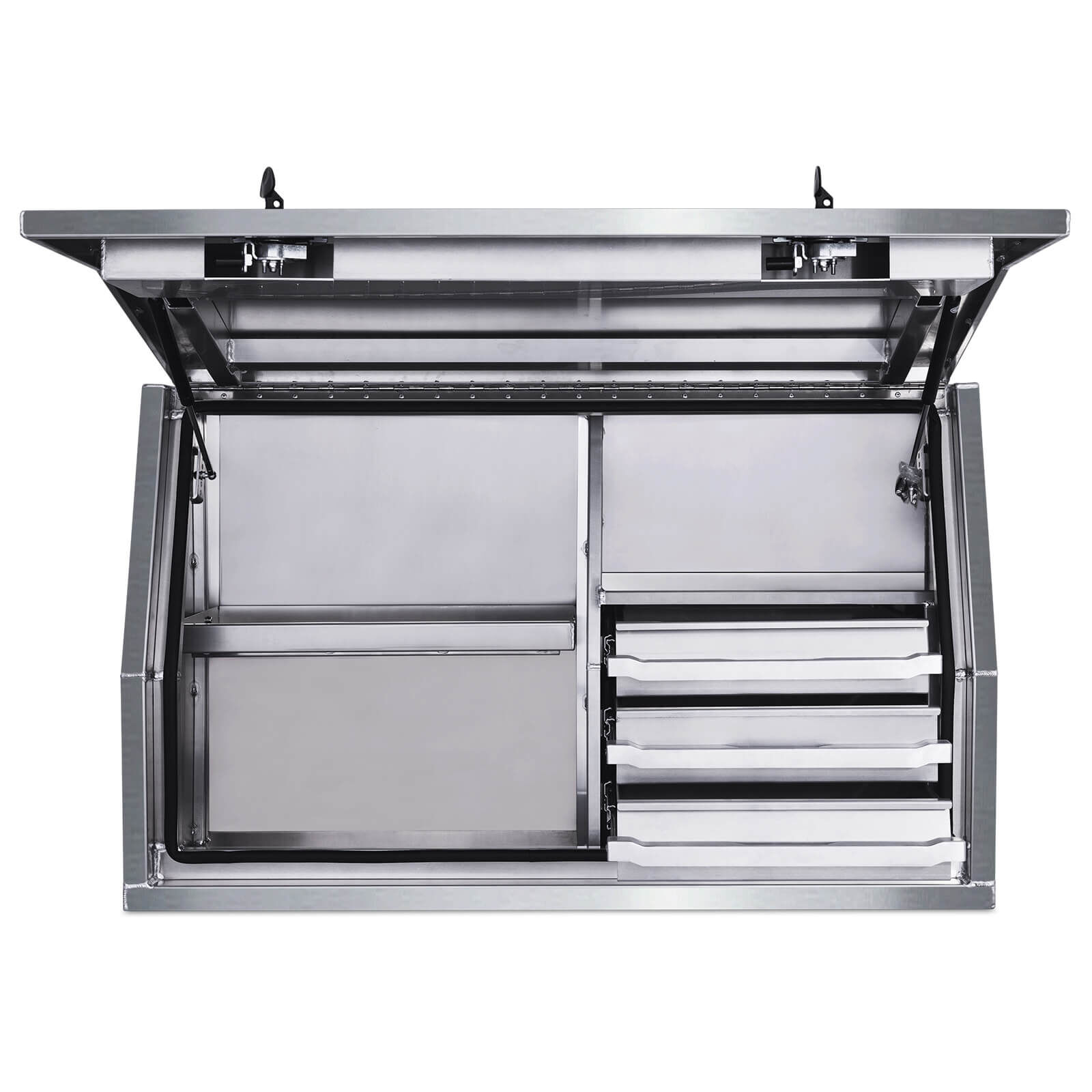

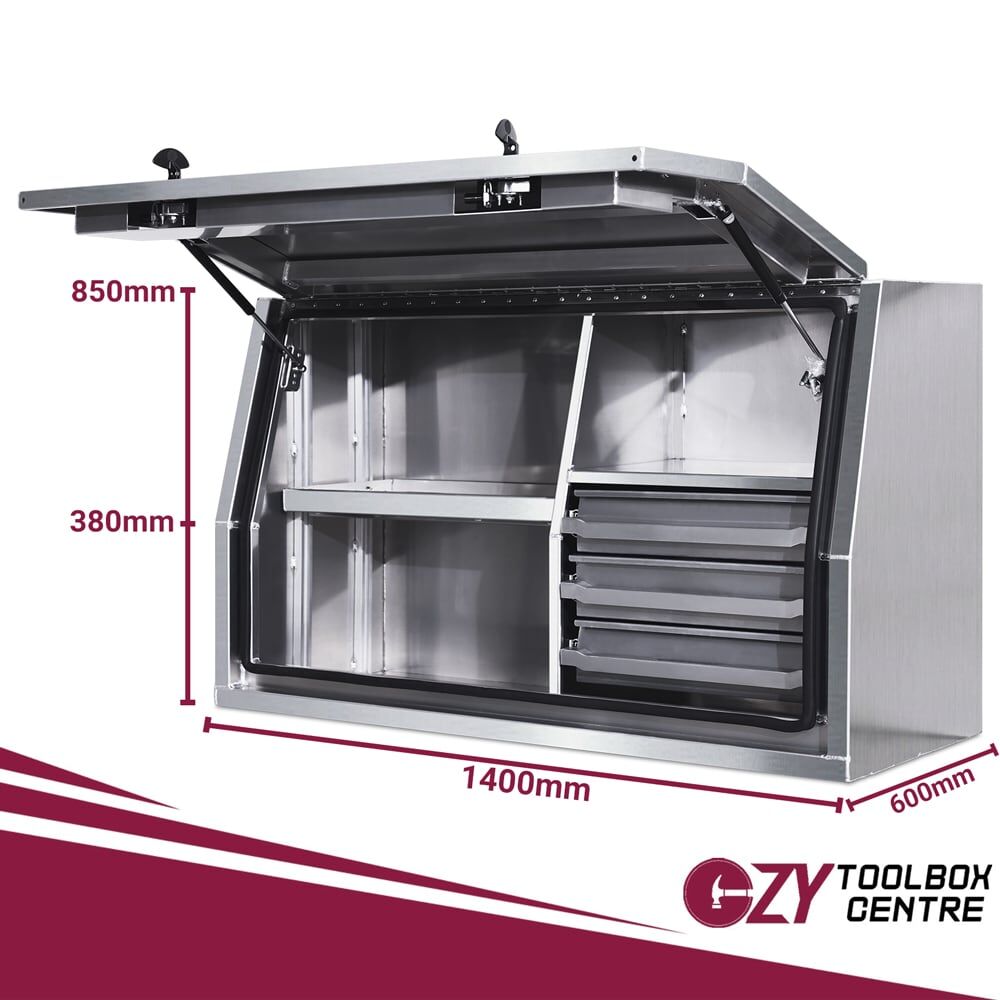

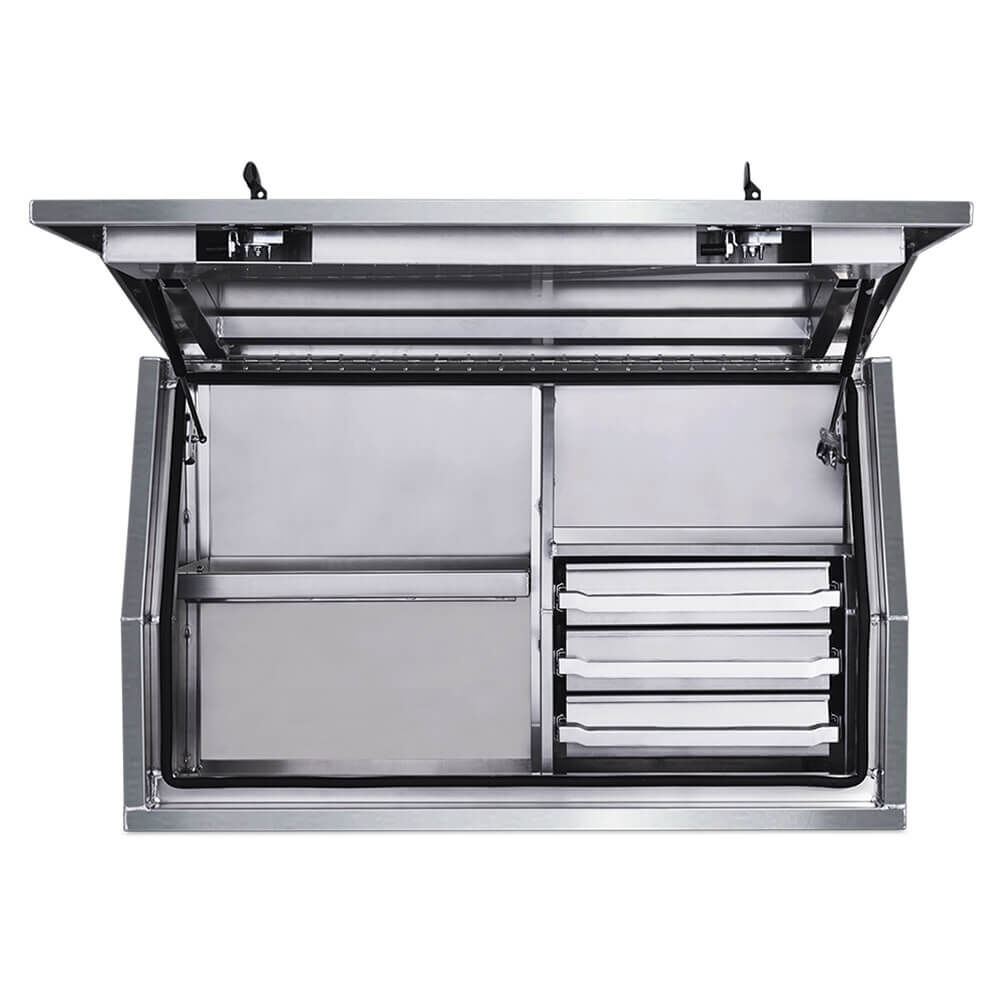

This 1400mm aluminium ute toolbox divides its interior in two: three drawers sit on one side, and a 696.5 mm open bay with a fitted 696.5 x 380 mm shelf takes the other. Small parts stay sorted in the drawers, while gear that won't fit a drawer still has a proper home. Each drawer is 485 mm wide and 445 mm deep inside, runs on heavy-duty slides rated to 50 kg and opens with a push-to-open latch. This 1400 x 600 x 850 mm ute toolbox is built from 2.5 mm 5052 marine-grade aluminium on every panel, fully welded, with reinforced side walls and roof, a raw flat plate finish and two whale tail compression locks on the full lid. It's stocked in Sydney, Brisbane and Perth with a 24-month warranty.
DIMENSIONS
| External width | 1400 mm |
|---|---|
| External depth | 600 mm |
| External height | 850 mm |
| Angled face, from vertical | 16.3 degrees |
CONSTRUCTION
| Alloy | 5052 marine grade aluminium |
|---|---|
| Thickness | 2.5 mm |
| Reinforced panels | Side walls and roof |
| External finish | Raw, flat plate |
HARDWARE AND FIT OUT

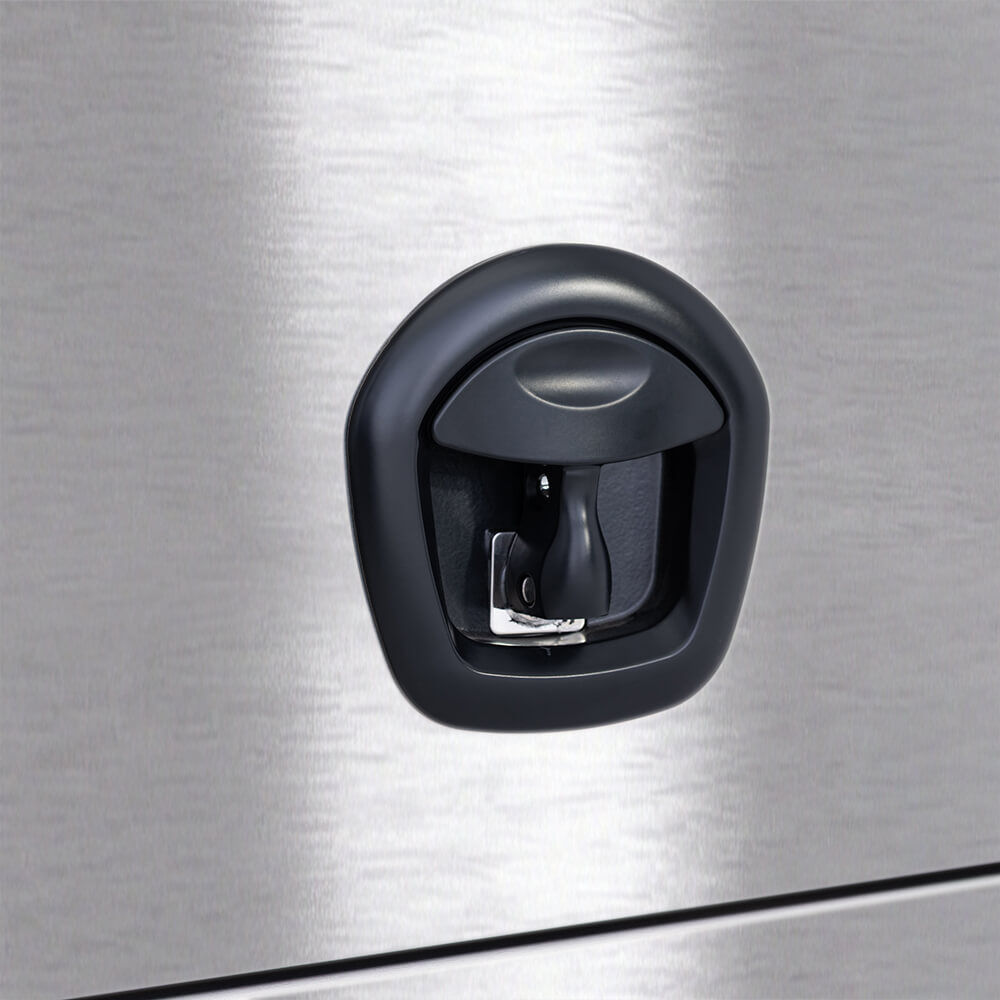

| Lock type | Whale tail compression lock |
|---|---|
| Locks fitted | 2 |
| Keyed alike | Yes, across the range |
| Keys supplied | Yes, 4 with the box |

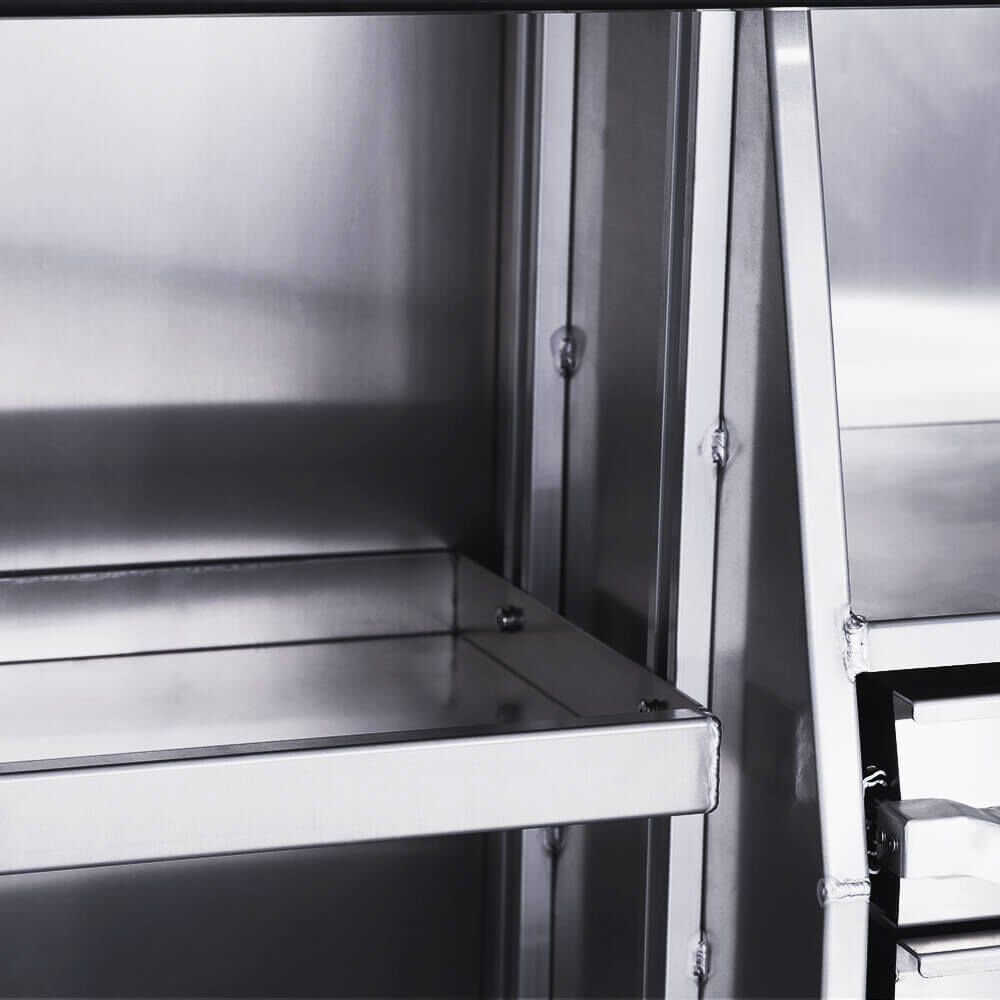

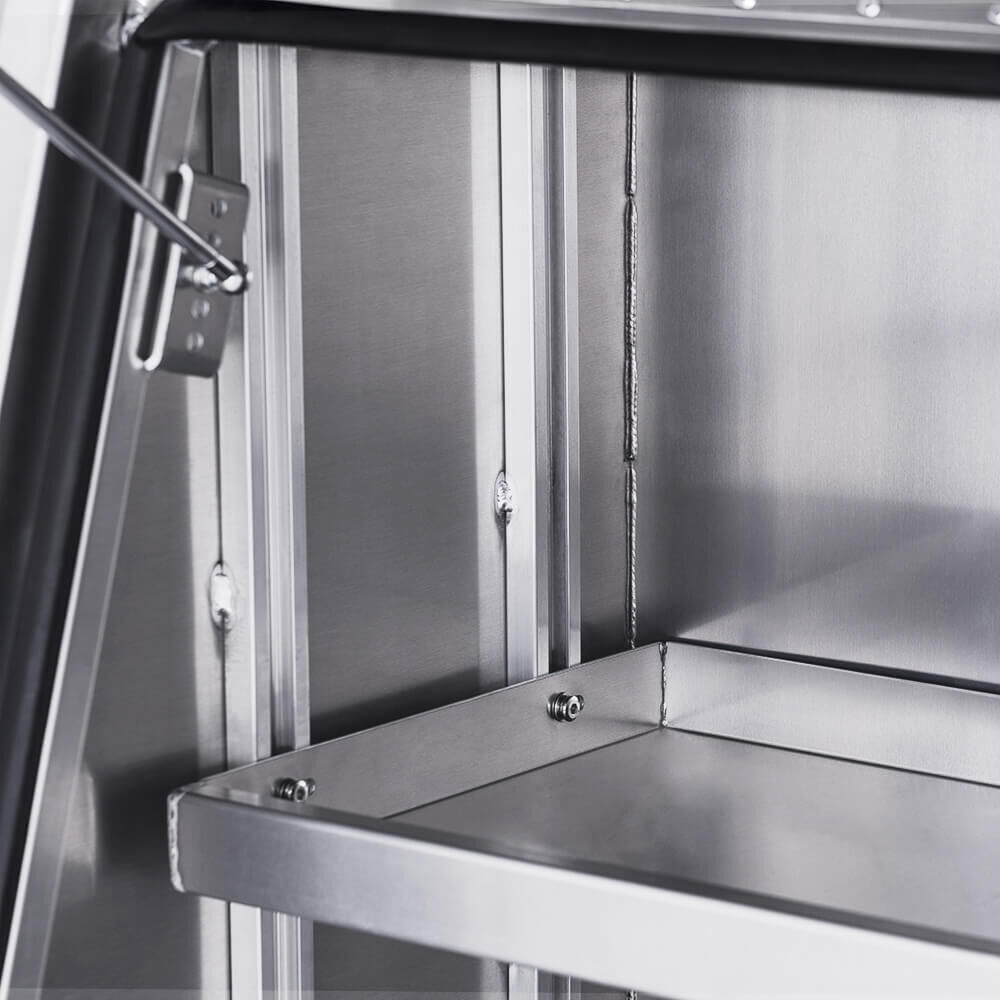

| Shelf in left compartment | Yes, 1 |
| Shelf size and rating | 50kg |
| Drain points | Yes, in the lid |
| Mounting method | M10 bolts, 40 x 40 washers, nyloc nuts |

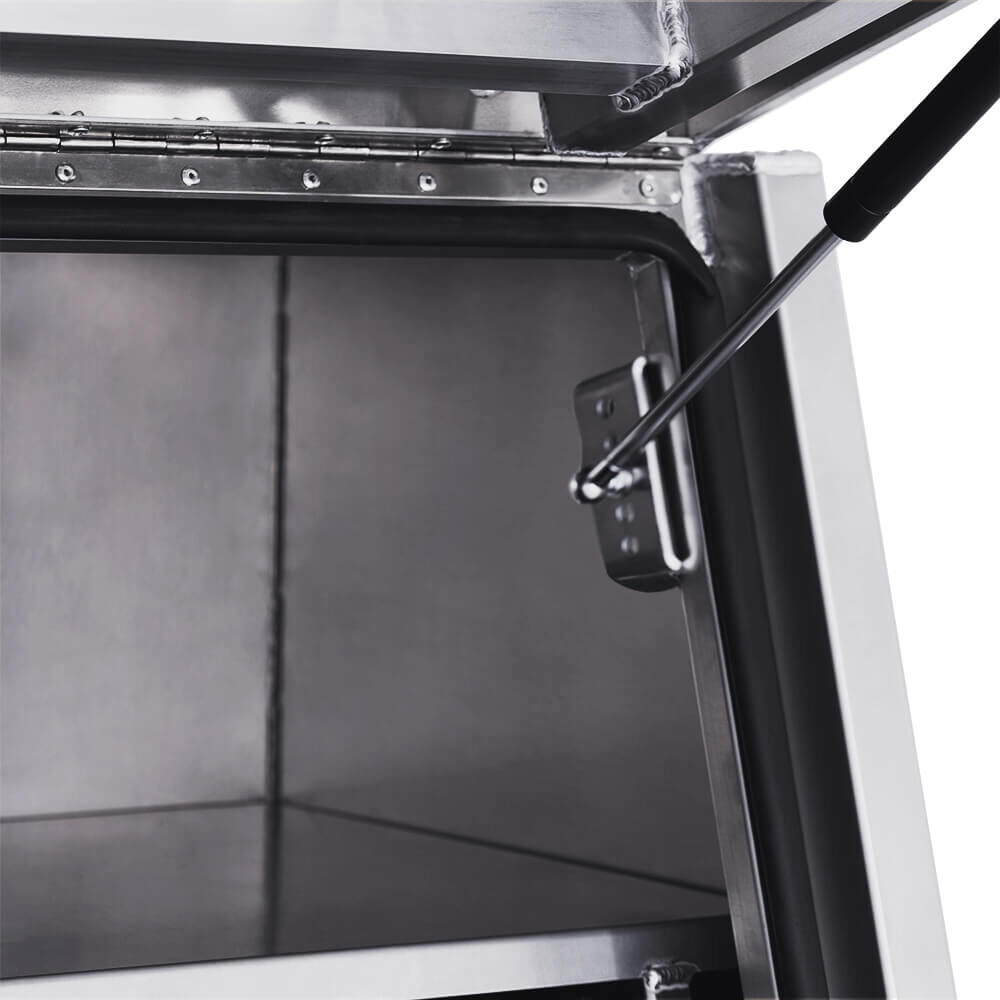

LIDS AND GAS STRUTS
| Lid configuration | Single full lid, full width |
|---|---|
| Lid opening | Upward on gas struts |
| Gas struts fitted | 2 |
| Lid width | 1400 mm, full width |
| Strut force each | 200 N |
| Hinge type and material | Stainless steel piano hinge |

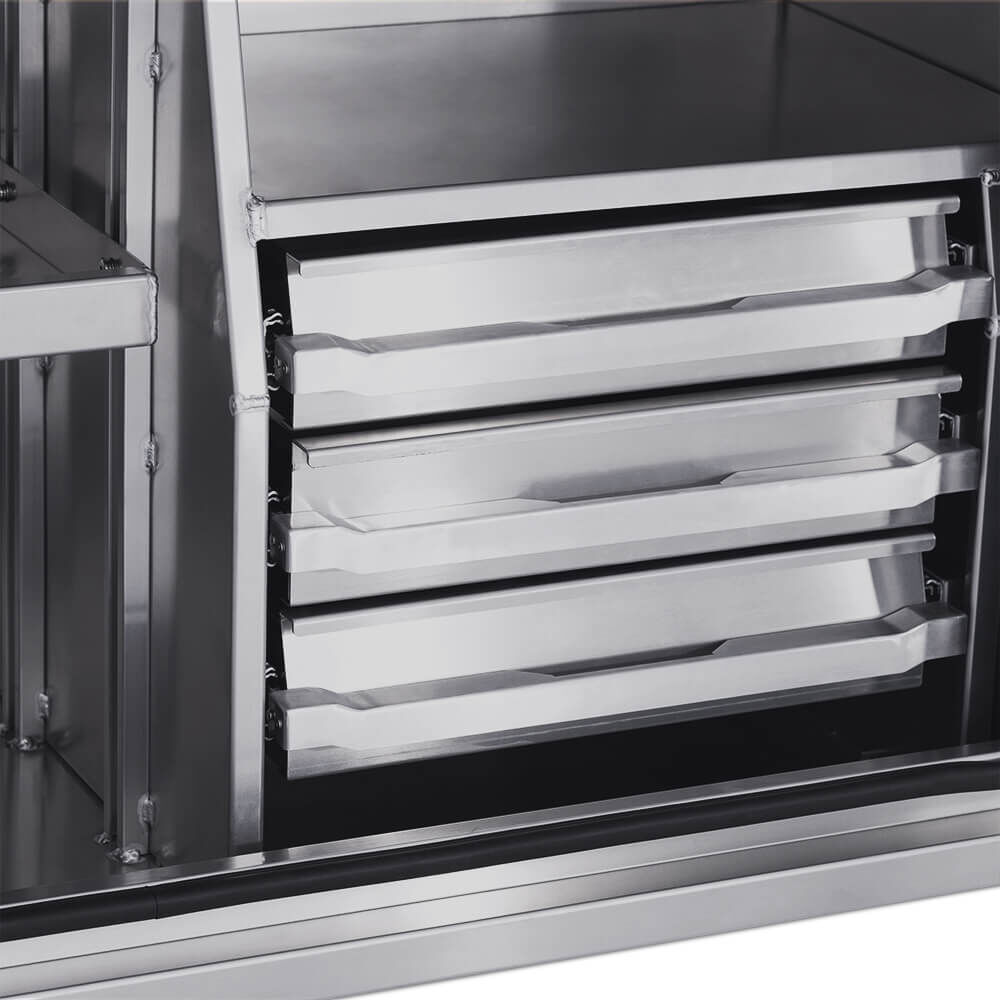

DRAWERS AND STORAGE
| Number of drawers | 3 |
|---|---|
| Drawer type | Internal, under the lid |
| Drawer internal width | 485 mm |
| Drawer internal depth | 445 mm |
| Drawer internal height | 118 mm |
| Shelf length | 690 mm |
| Shelf depth | 475 mm |
| Top compartment length | 650 mm |
| Top compartment depth | 450 mm |
| Top compartment height | 320 mm |
| Latch type | Push to open |
| Drawer load rating | 50 kg per drawer |
PACKING AND FREIGHT
| Packaging | 10 mm foam |
|---|---|
| Stocked at | Sydney, Brisbane, Perth |
| SKU | OZY-H-1468FD-3FP |
| Brand | OZYTOOLBOX |
| Shipping Weight | 75.0000kg |
| Shipping Width | 0.620m |
| Shipping Height | 0.970m |
| Shipping Length | 1.420m |
| Shipping Cubic | 0.853988000m3 |
| Unit Of Measure | m |
