Jack Off Canopy - Black 1780mm x 1200mm x 850mm

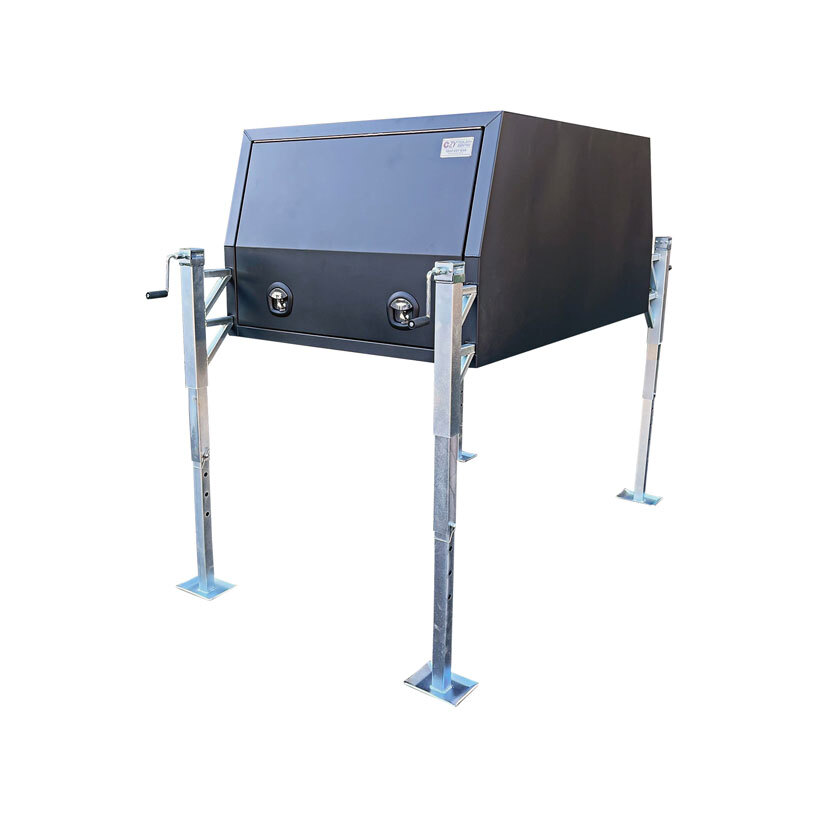

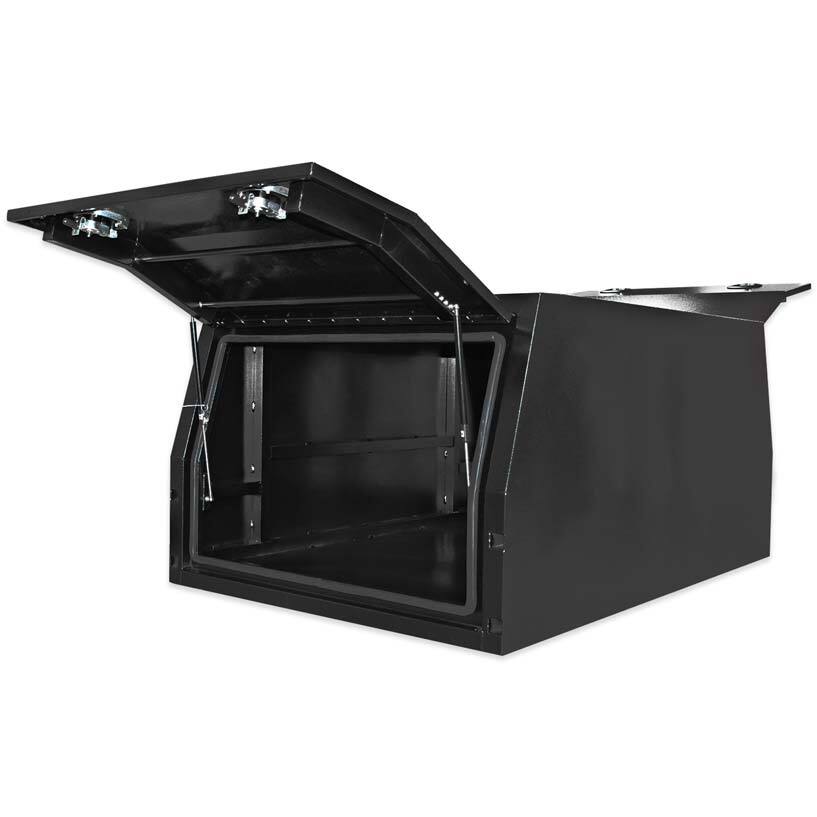

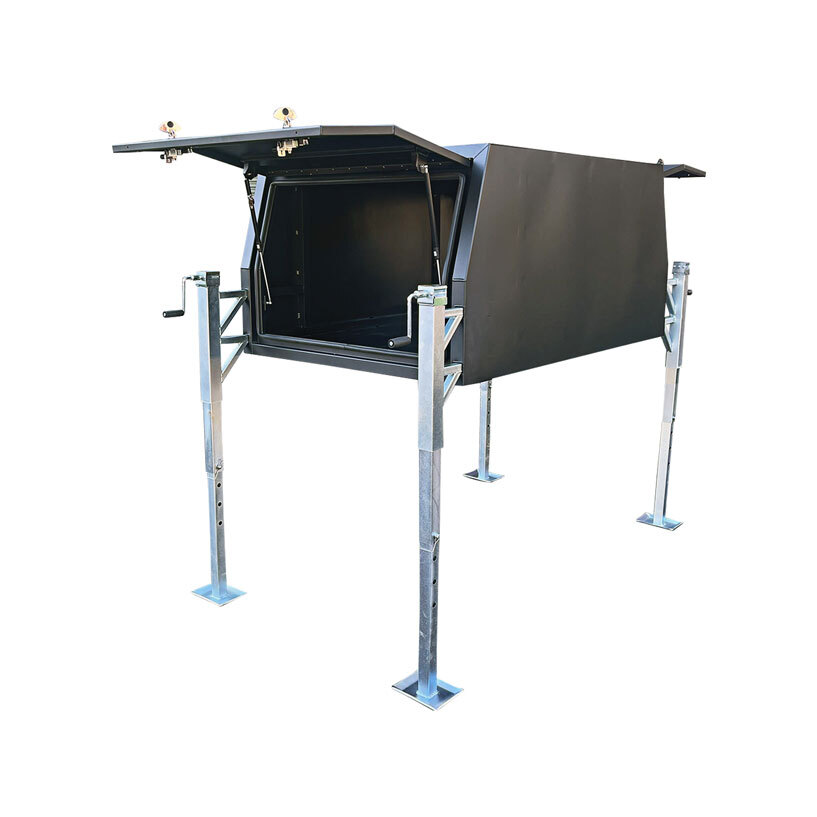

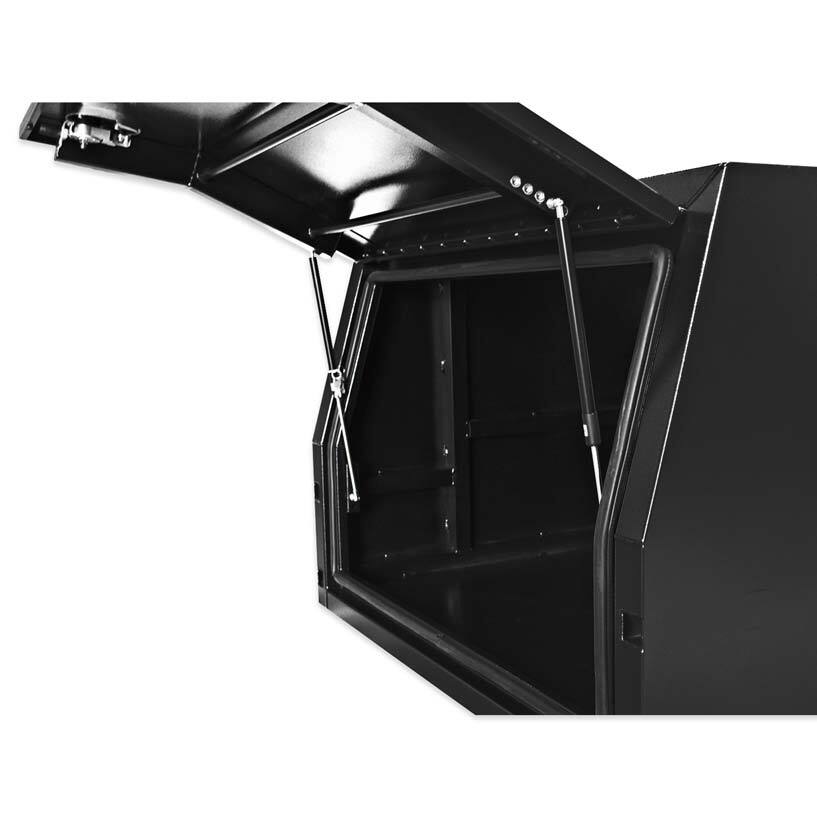

This black 1780mm aluminium ute canopy is a jack-off design, so it can come off the tray on jack-off legs when you need the full deck back, then go back on when the job calls for lockable storage. Its gullwing doors lift on four gas struts to open up the 1780 x 1200 x 850 mm body, and they hang on stainless steel piano hinges and close with whale tail compression locks. Every panel is 2.5 mm 5052 marine-grade aluminium, fully welded, with the floor, walls and roof all reinforced. We stock it in Sydney, Brisbane and Perth, backed by a 24-month warranty.

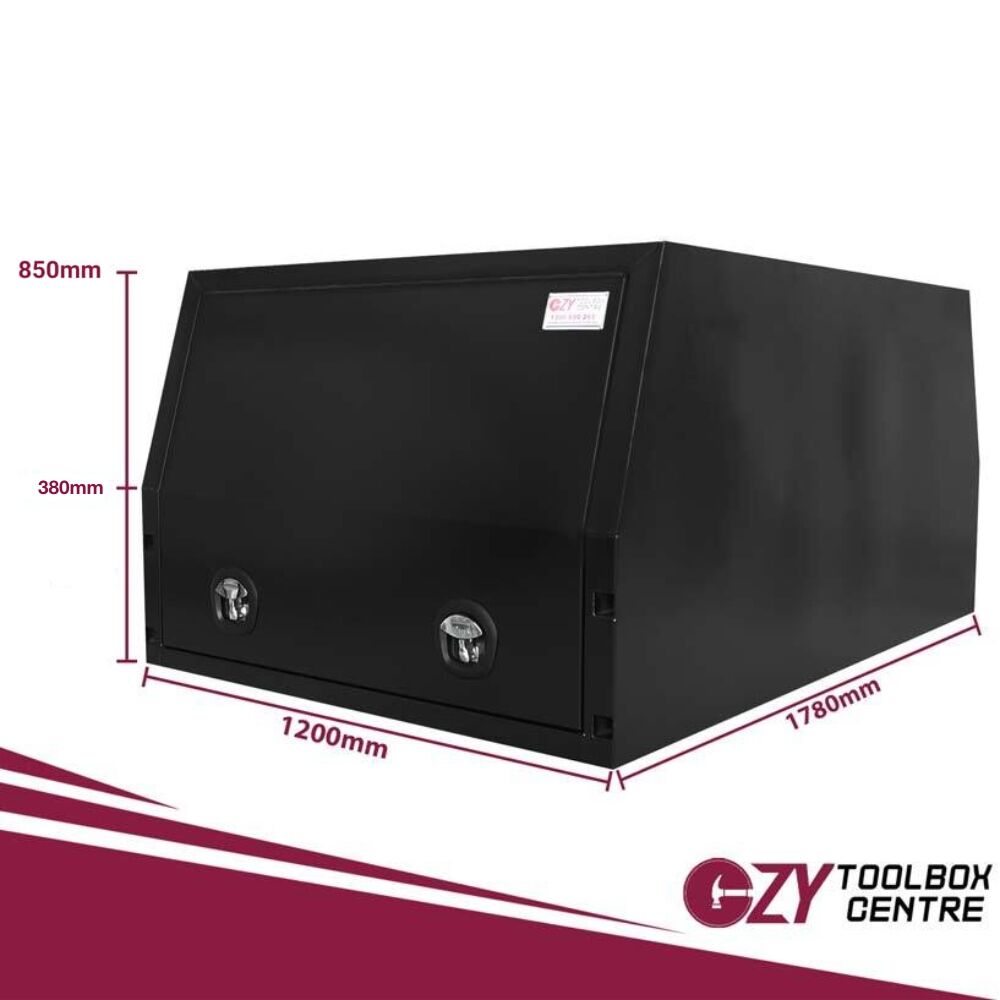

DIMENSIONS
| External width | 1780 mm |
|---|---|
| External depth | 1200 mm |
| External height | 850 mm |
| Roof width across the top | 1507 mm |
| Tapered face length | 488 mm |
| Taper, from vertical | 16.2 degrees |
CONSTRUCTION
| Alloy | 5052 marine grade aluminium |
|---|---|
| Thickness | 2.5 mm |
| Reinforced panels | Floor, walls and roof |
| External finish | Powdercoated Black |
STORAGE
| Number of drawers | None |
|---|---|
| Shelves fitted | 1 |
| Shelf load rating | 50 kg |
COMPLIANCE
| Weather sealing | Dust and water sealed |
|---|---|
| Warranty | 24 months |
LIDS AND GAS STRUTS
| Lid configuration | Jack off, gullwing |
|---|---|
| Gas struts fitted | To be confirmed |
| Strut force each | To be confirmed |
| Strut stroke | To be confirmed |
| Hinge type and material | Stainless steel piano hinge |
HARDWARE AND FIT OUT
| Lock type | Whale tail compression lock |
|---|---|
| Keyed alike | Yes, across the range |
| Keys supplied | Yes, 2 with the box |
| Drain points | Yes, in the lid |
| Mounting method | M10 bolts, 40 x 40 washers, nyloc nuts |
PACKING AND FREIGHT
| Packaging | 10 mm foam |
|---|---|
| Stocked at | Sydney, Brisbane, Perth |
| SKU | OZY-H-1718CFJB |
| Brand | OZYTOOLBOX |
| Shipping Weight | 112.0000kg |
| Shipping Width | 1.800m |
| Shipping Height | 0.970m |
| Shipping Length | 1.220m |
| Shipping Cubic | 2.130120000m3 |
| Unit Of Measure | m |
