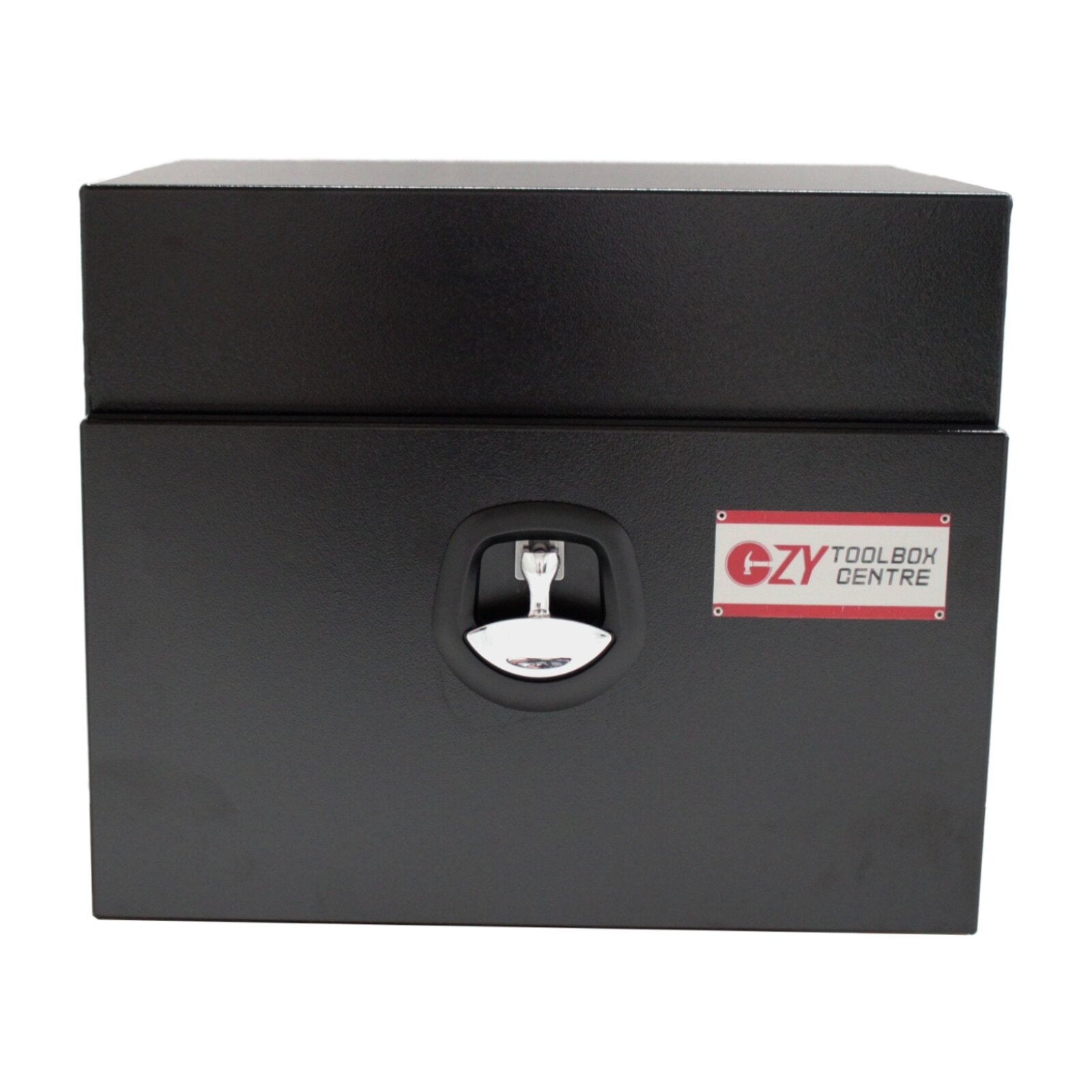

Under Tray Truck Tool Box with Drawer - Black 600mm x 500mm x 500mm

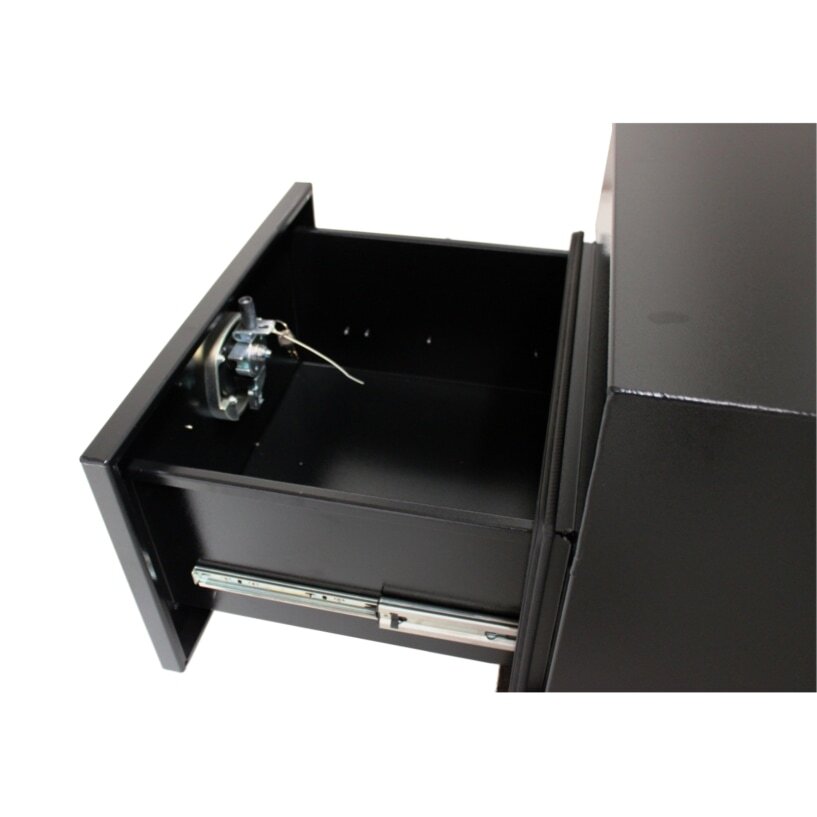

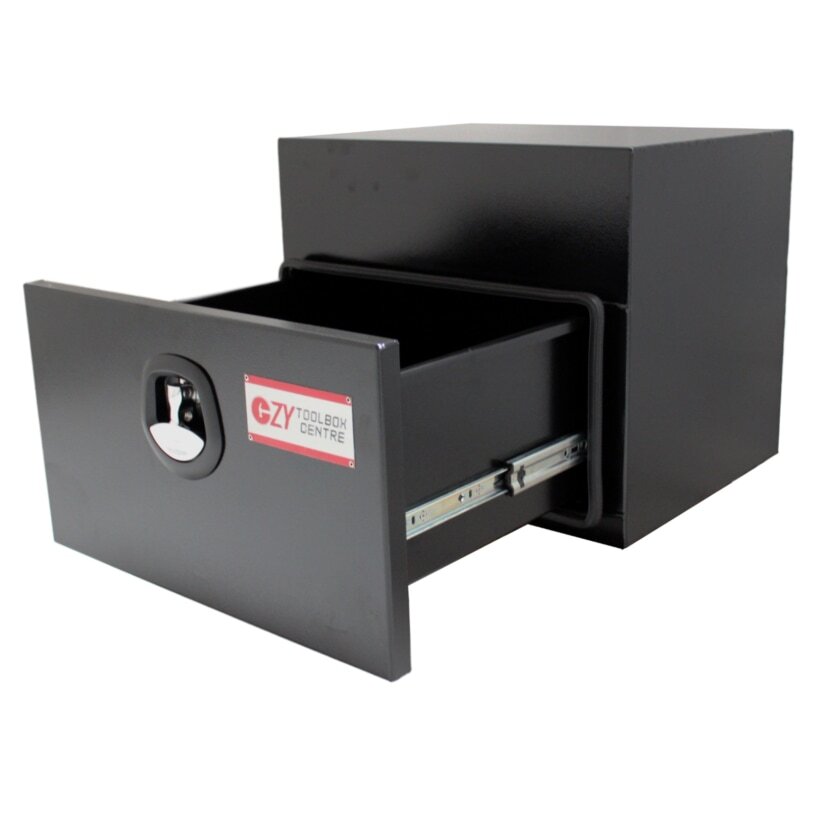

Instead of reaching into the back of a box, this black 600mm aluminium undertray toolbox has a drawer door that slides the contents out towards you, so nothing gets left behind in the far corners. The drawer runs on heavy-duty slides rated to 50 kg, opens with a push-to-open latch and is secured with whale tail compression locking. Mounted under the tray, the 600 x 500 x 500 mm body keeps gear off the deck without using up load space. Every panel is built from 2.5 mm 5052 marine-grade aluminium, fully welded, with reinforced side walls and roof, and back it with a 24-month warranty.
DIMENSIONS
| External width | 600 mm |
|---|---|
| External depth | 500 mm |
| External height | 500 mm |
| Door height | 229 mm |
| Fixed band above door | 270.5 mm |
CONSTRUCTION
| Alloy | 5052 marine grade aluminium |
|---|---|
| Thickness | 2.5 mm |
| External finish | Powdercoated Black |

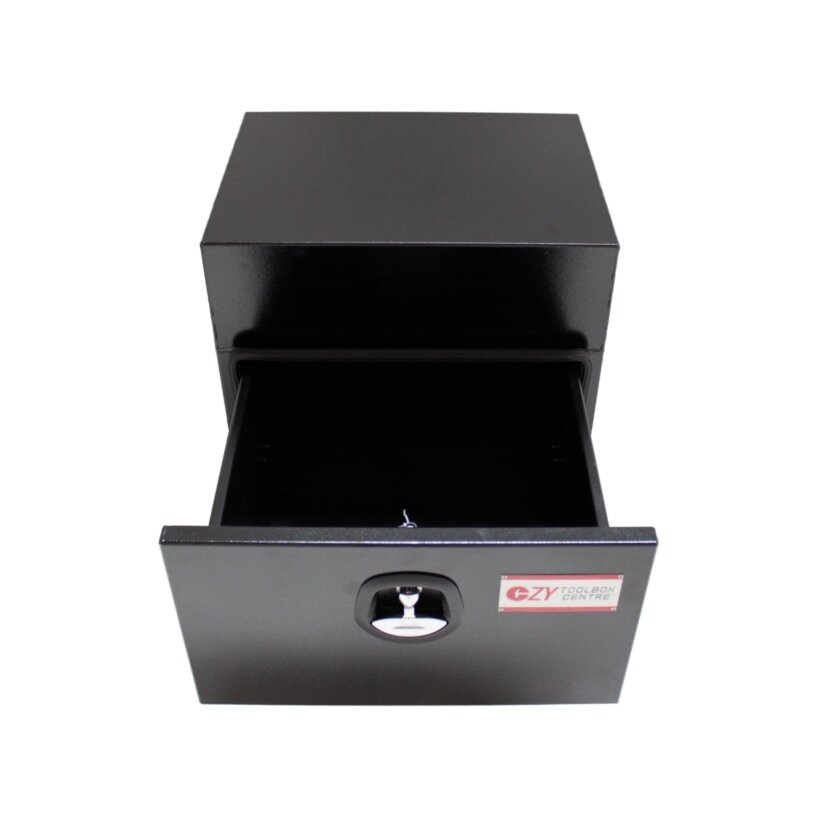

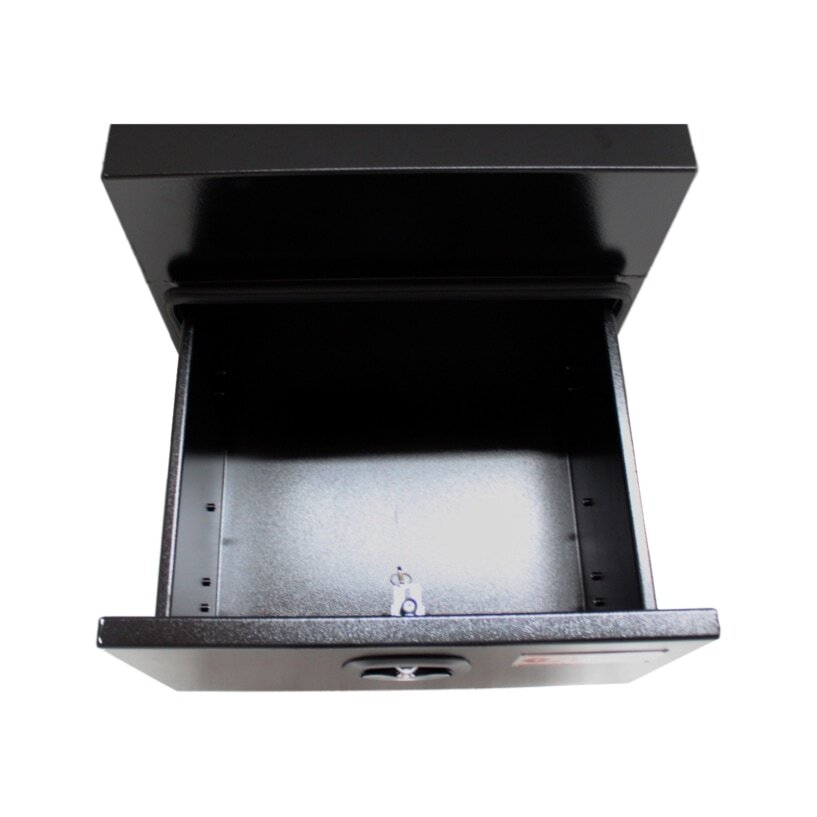

DRAWERS AND STORAGE
| Number of drawers | 1 |
|---|---|
| Drawer internal width | 460 mm |
| Drawer internal depth | 460 mm |
| Drawer front height | 229 mm |
| Drawer load rating | 50 kg per drawer |
HARDWARE AND FIT OUT
| Lock type | Whale tail compression lock |
|---|---|
| Keys supplied | Yes, 2 with the box |
| Mounting method | M10 bolts, 40 x 40 washers, nyloc nuts |
COMPLIANCE
| Weather sealing | Dust and water sealed |
|---|---|
| Warranty | 24 months |
PACKING AND FREIGHT
| Packaging | 10 mm foam |
|---|---|
| Stocked at | Sydney |
| SKU | OZY-H-655UFP-DB |
| Brand | OZYTOOLBOX |
| Shipping Weight | 18.0000kg |
| Shipping Width | 0.620m |
| Shipping Height | 0.520m |
| Shipping Length | 0.520m |
| Shipping Cubic | 0.167648000m3 |
| Unit Of Measure | m |
