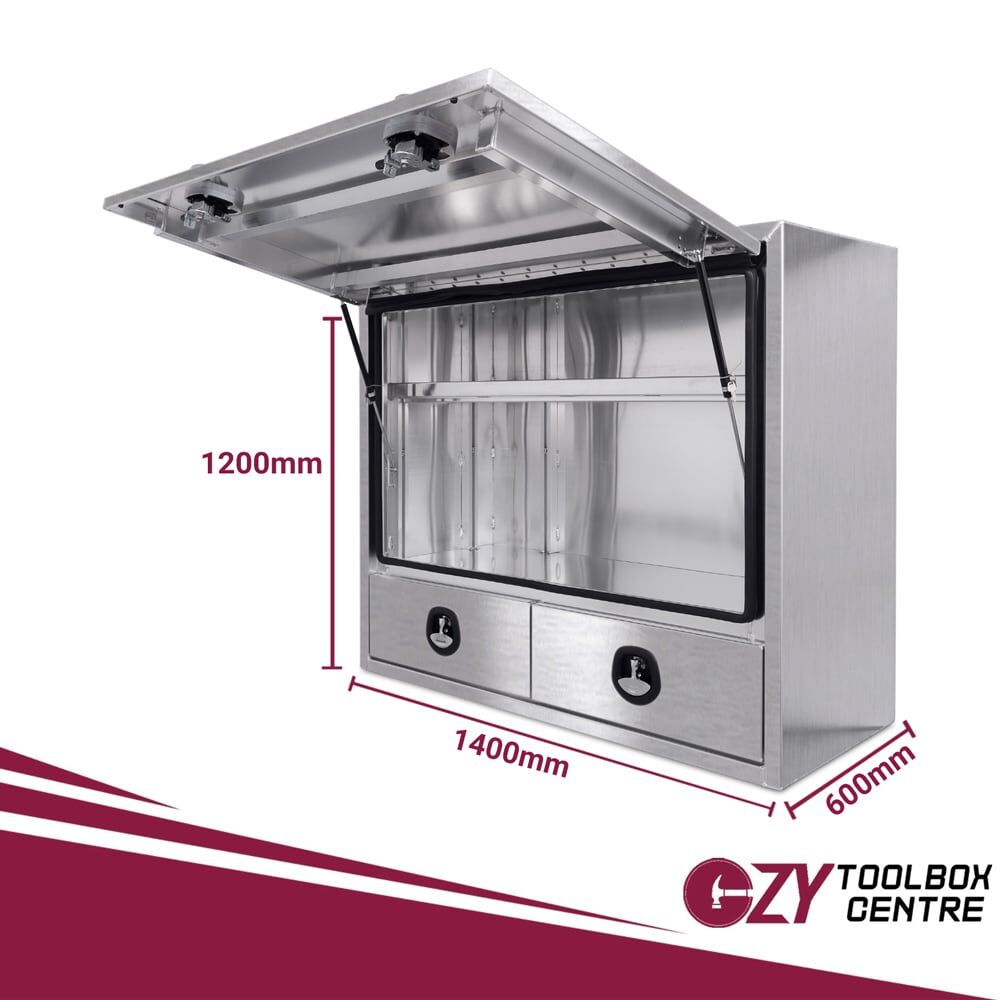

Half Lid Truck Toolbox with 2 External Drawers 1400mm x 600mm x 1200mm, 3/4 Side Opening Truck Box

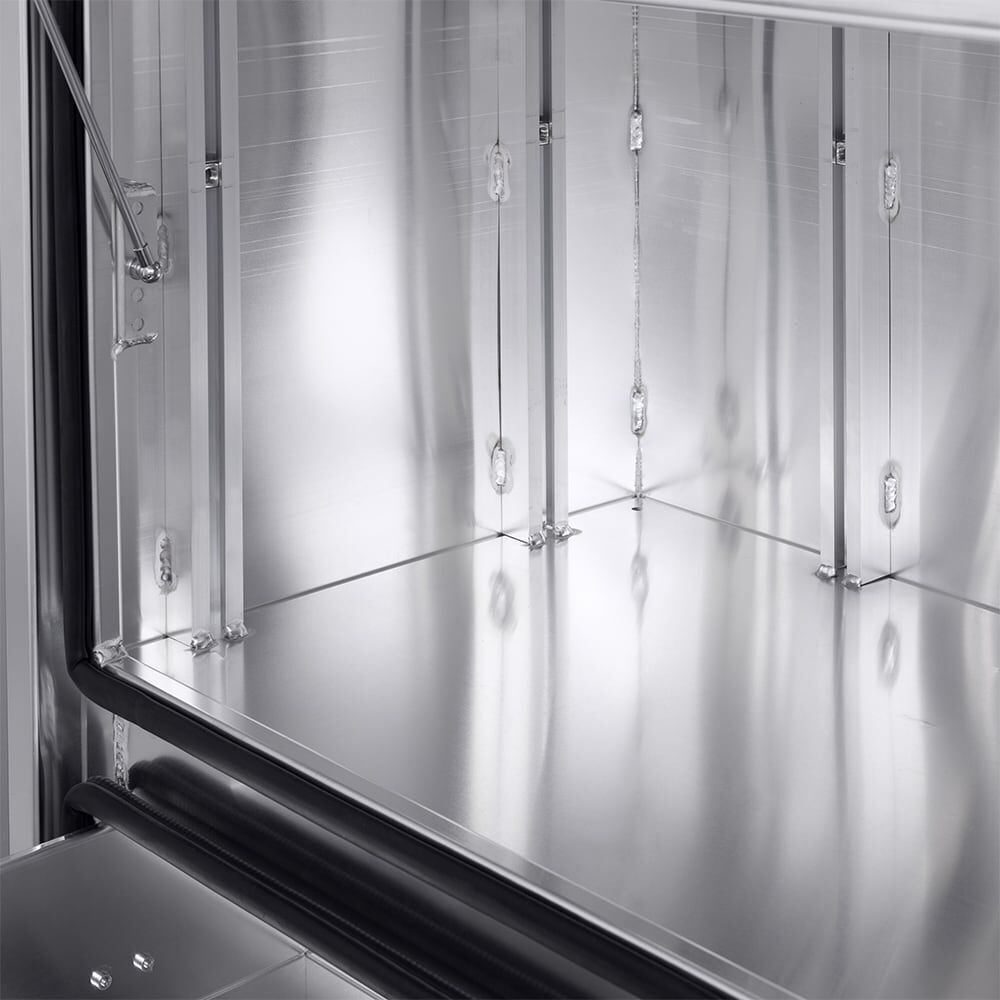

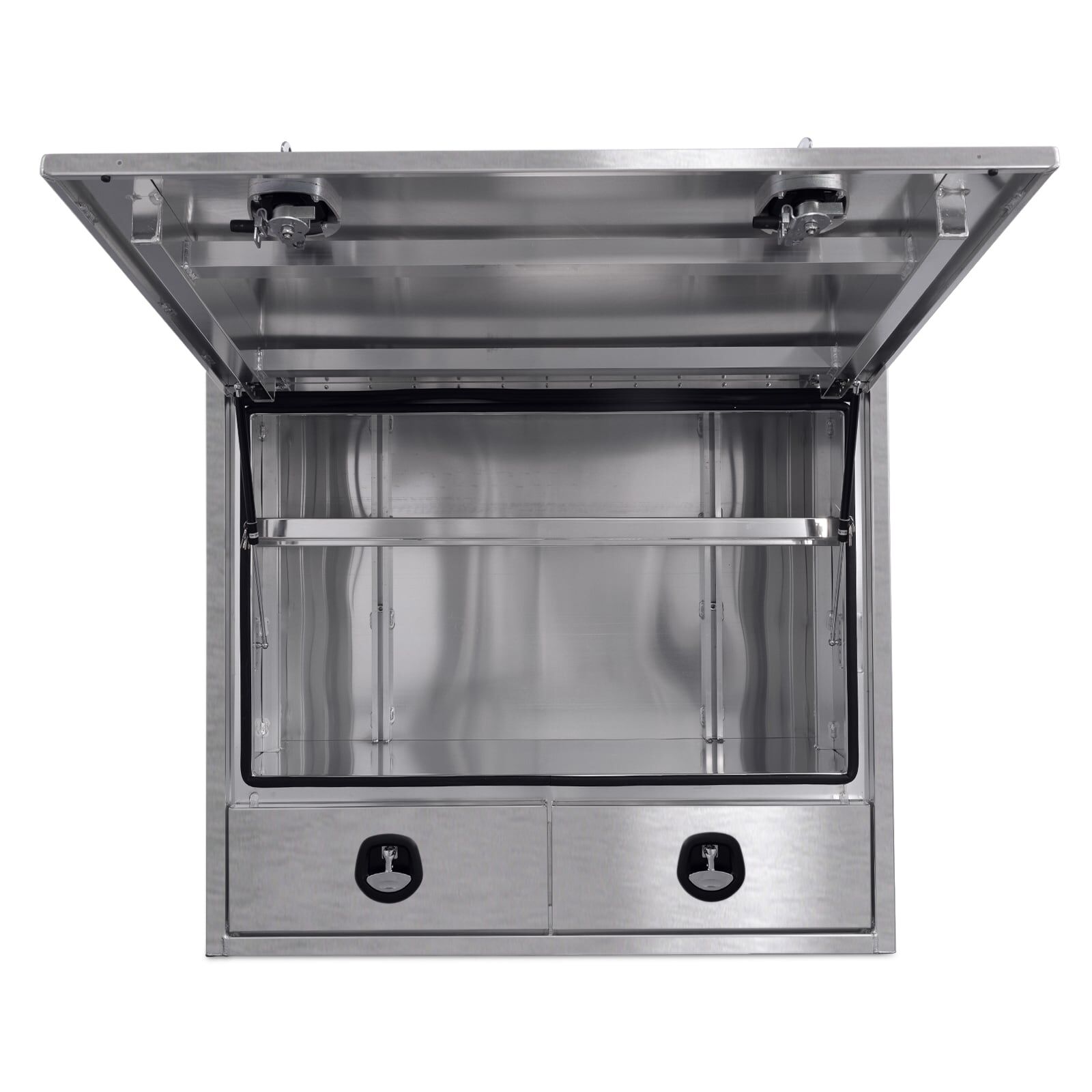

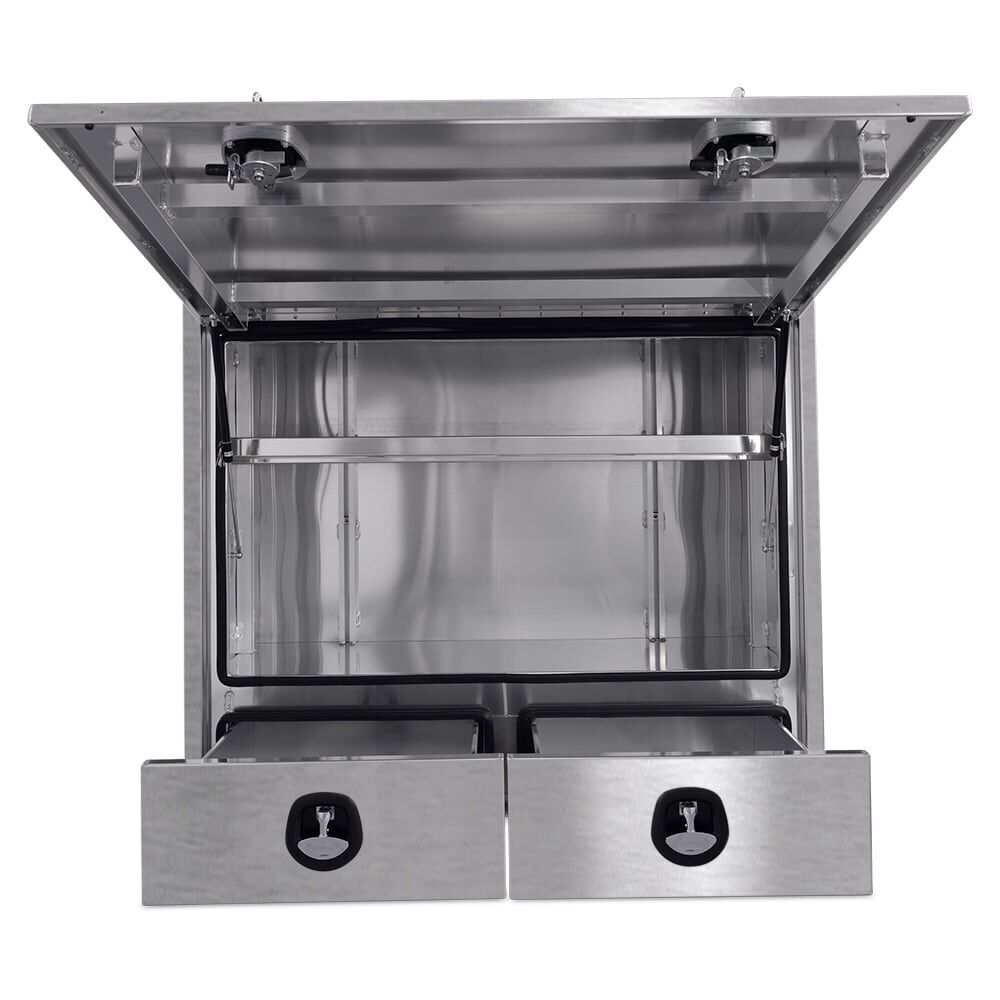

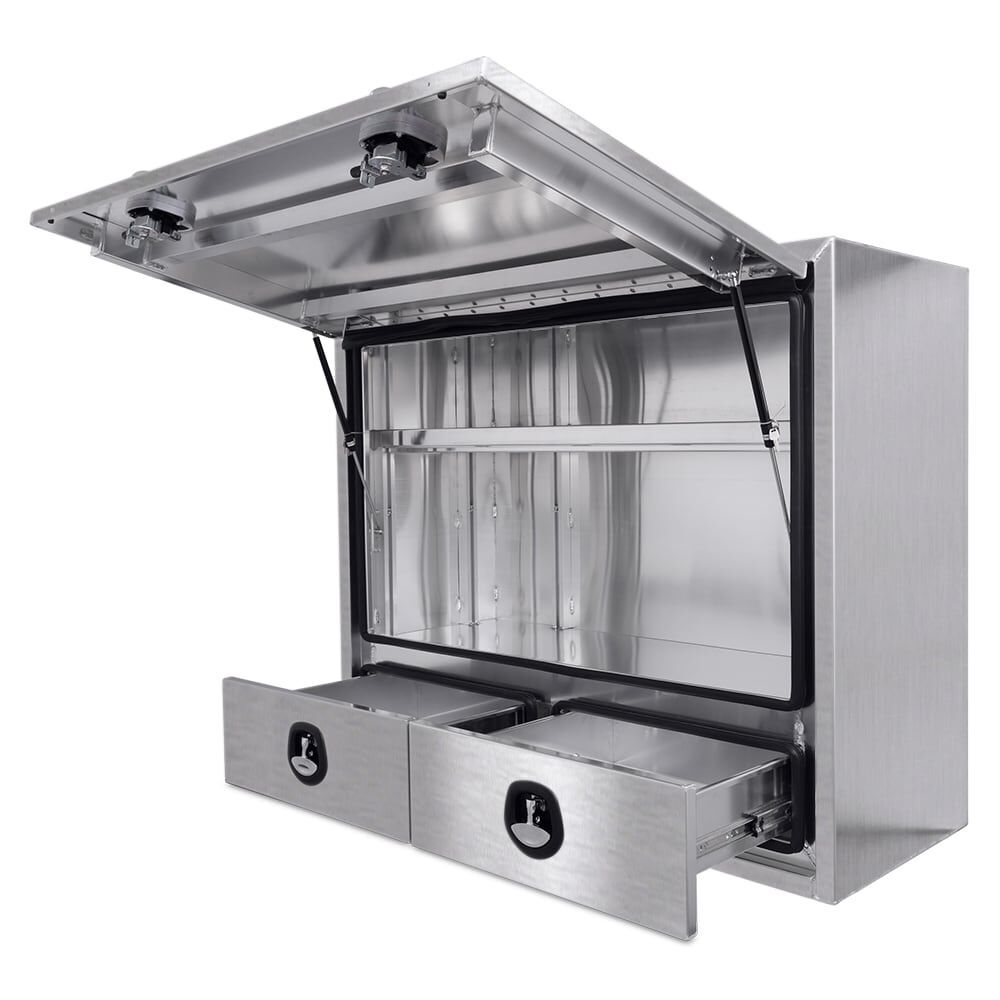

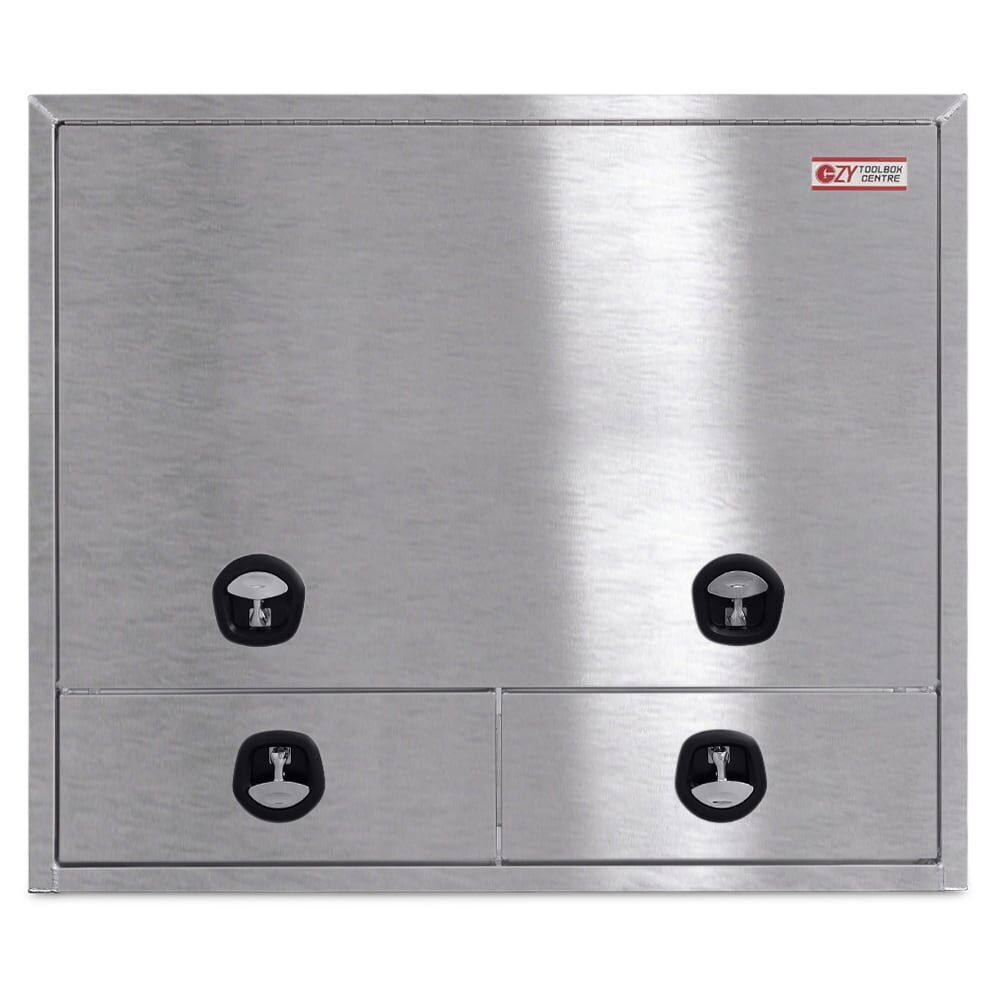

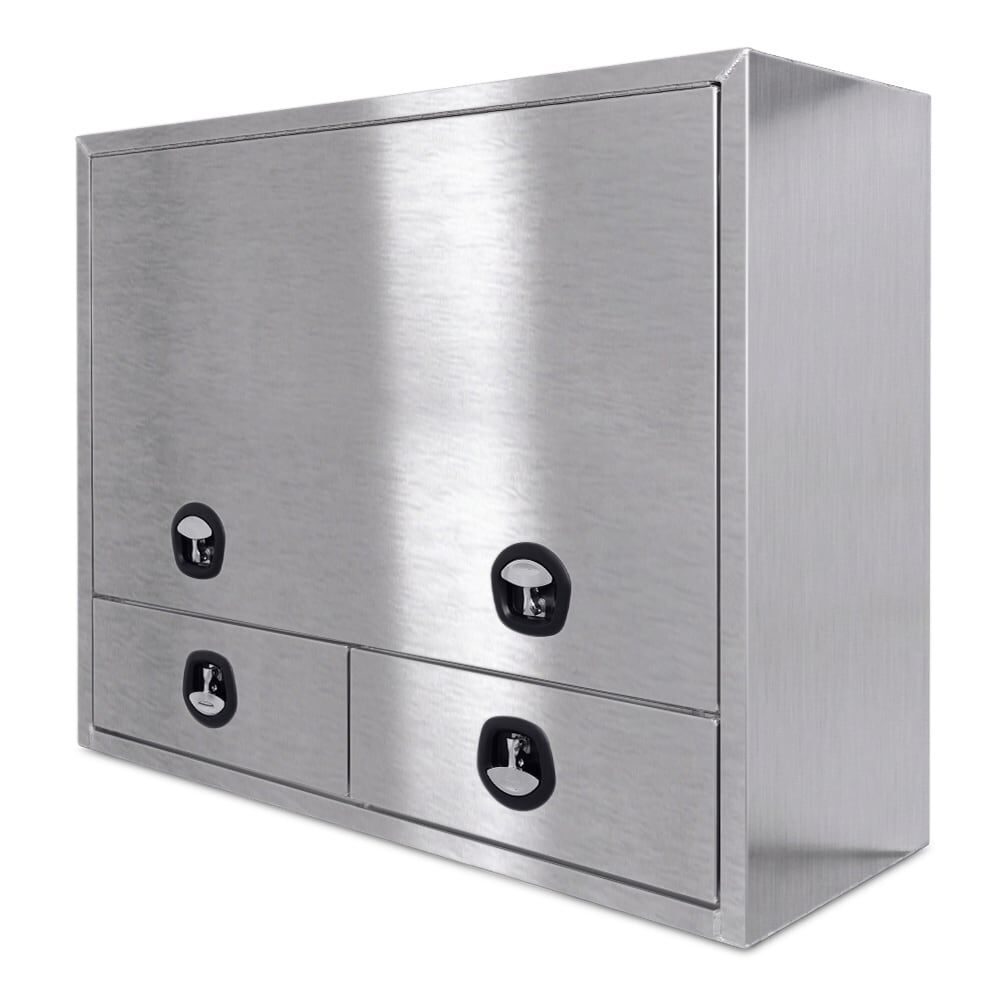

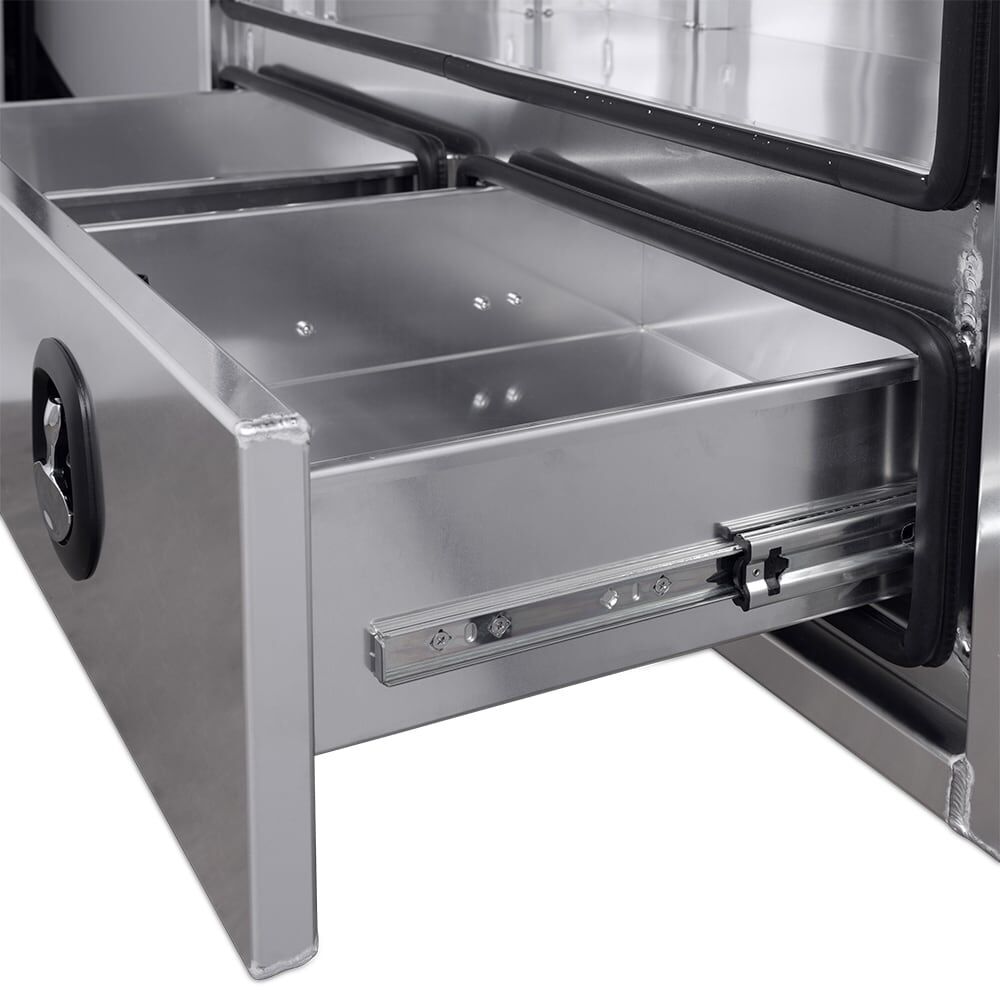

If your tray won't take a 1900 mm box but you still want drawers you can reach from outside, this 1400mm aluminium truck toolbox combines a half lid with two external drawers that open without lifting the lid. Both drawers are 570 mm deep inside with 140 mm fronts, running on heavy-duty slides rated to 50 kg with push-to-open latches. The half lid opens on twin gas struts for larger gear. The 1400 x 600 x 1200 mm body is built from 3.0 mm 5052 marine-grade aluminium on every panel, fully welded, with reinforced side walls, roof and floor and a raw flat plate finish. It's covered by our 24-month warranty.
DIMENSIONS
| External width | 1400 mm |
|---|---|
| External depth | 600 mm |
| External height | 1200 mm |
CONSTRUCTION
| Alloy | 5052 marine grade aluminium |
|---|---|
| Thickness | 3.0 mm |
| Reinforced panels | Side walls and roof |
| External finish | Raw, flat plate |

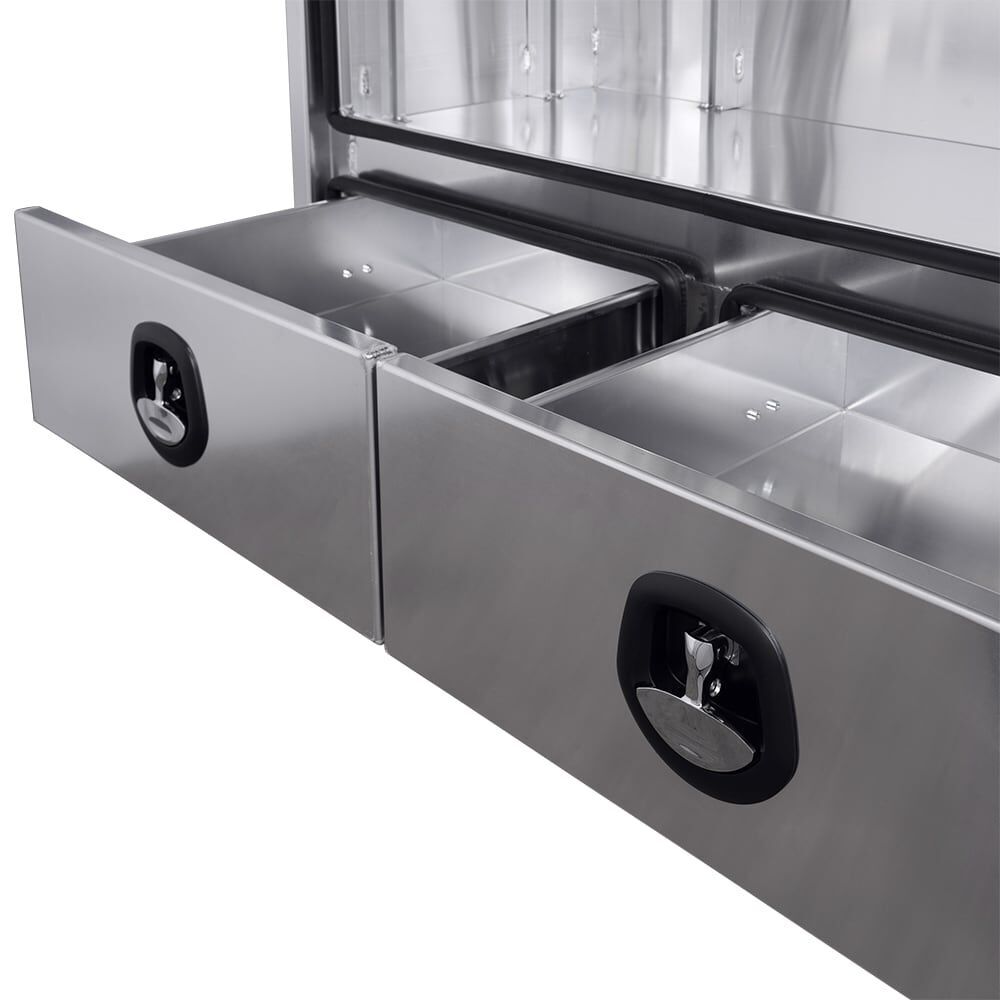

DRAWER SPECIFICATIONS
| Drawer length | 530 mm |
|---|---|
| Drawer depth | 565 mm |
| Drawer height | 165 mm |
| Shelf length | 1340 mm |
| Shelf depth | 475 mm |

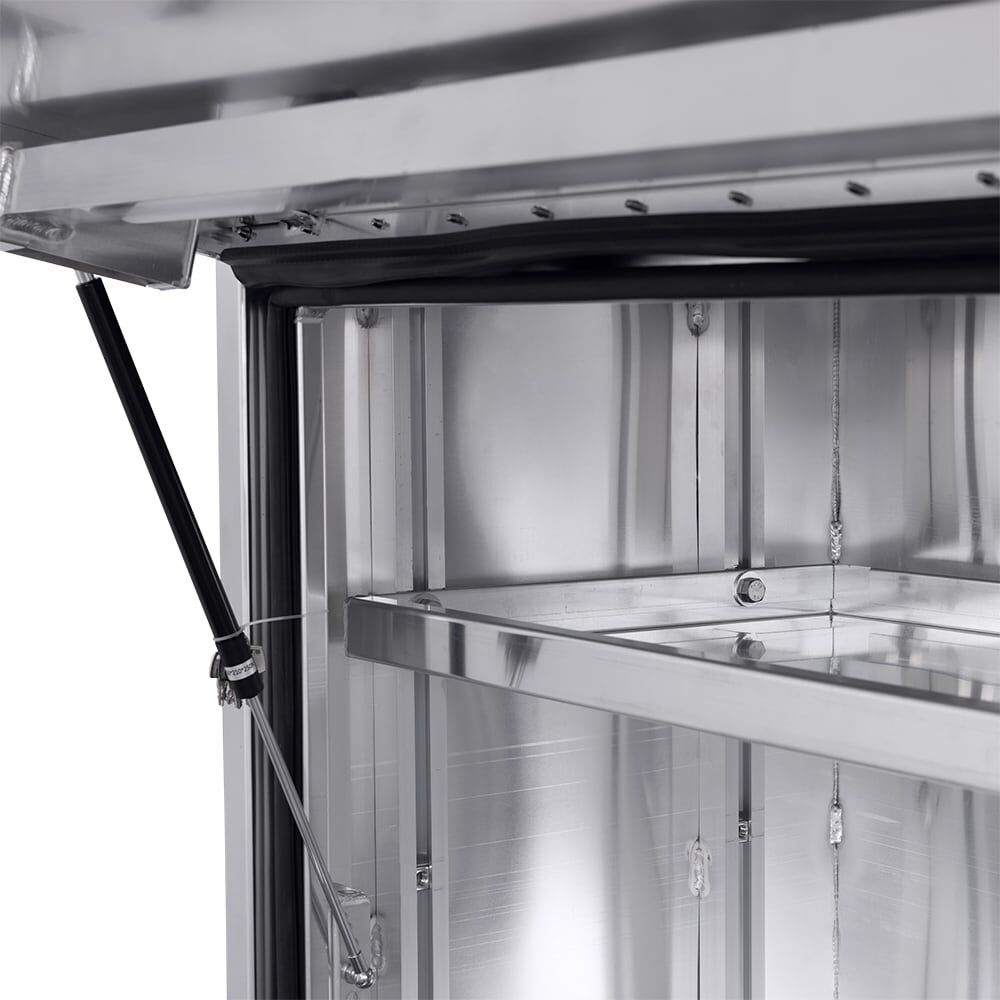

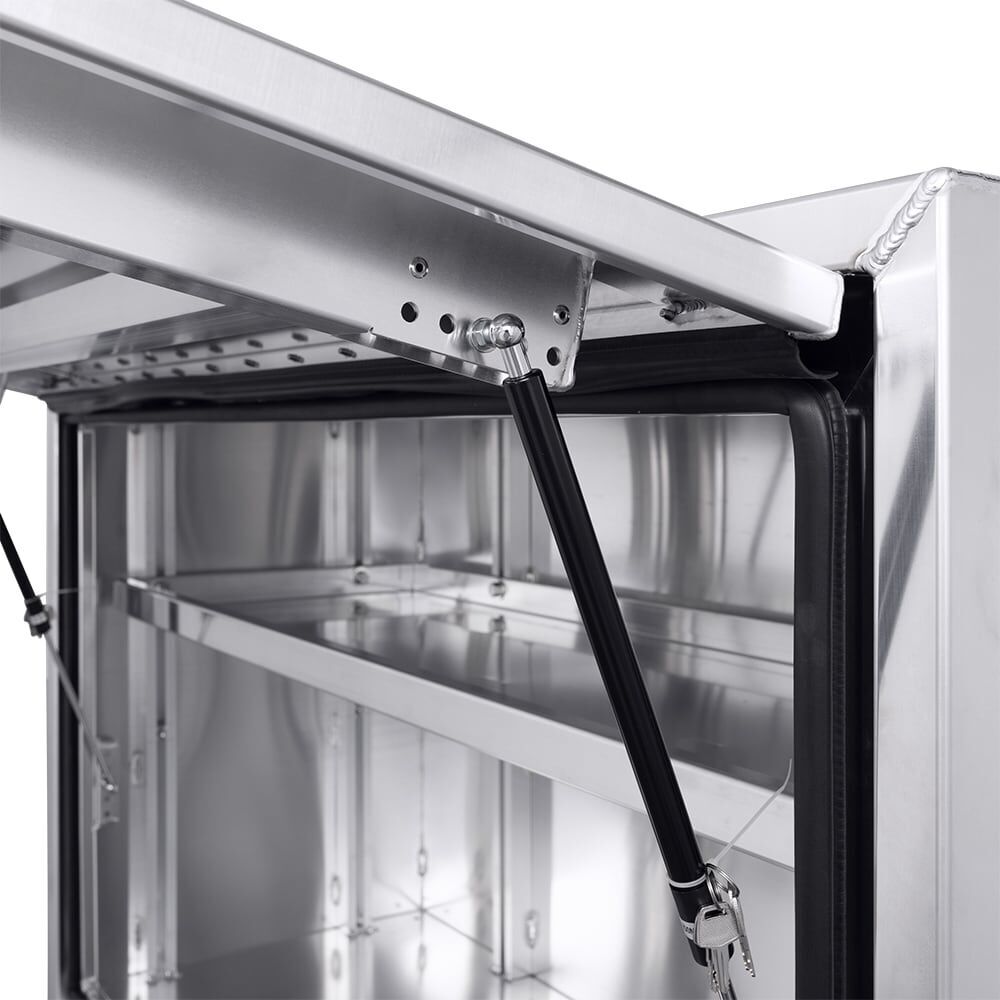

LIDS AND GAS STRUTS
| Lid configuration | Half lid |
|---|---|
| Gas struts fitted | 2 |
| Strut force each | 200 N |
| Strut stroke | 190 mm |
| Hinge type and material | Stainless steel piano hinge |
HARDWARE AND FIT OUT
| Lock type | Whale tail compression lock |
|---|---|
| Locks fitted | 4 |
| Keyed alike | Yes, across the range |
| Keys supplied | Yes, 4 with the box |
| Drain points | Yes, in the lid |
| Mounting method | M10 bolts, 40 x 40 washers, nyloc nuts |
COMPLIANCE
| Weather sealing | Dust and water sealed |
|---|---|
| Warranty | 24 months |
PACKING AND FREIGHT
| Packaging | 10 mm foam |
|---|---|
| Stocked at | Sydney, Brisbane, Perth |
| SKU | OZY-H-1461FP-2D |
| Brand | OZYTOOLBOX |
| Shipping Weight | 90.0000kg |
| Shipping Width | 0.620m |
| Shipping Height | 1.320m |
| Shipping Length | 1.420m |
| Shipping Cubic | 1.162128000m3 |
| Unit Of Measure | m |
